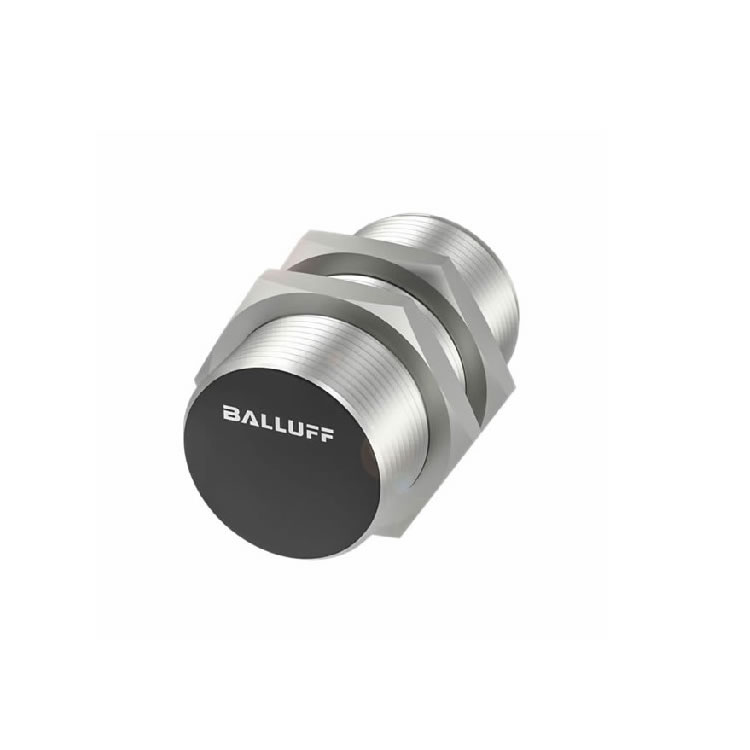

The BALLUFF BES M30MI-PSC15B-S04G inductive standard sensor, with dimensions of Ø30x65mm, features an M30x1.5 structure and flush installation.
It has a sensing range of 15mm, a PNP normally open contact switch output, and a switching frequency of 100Hz. The housing is made of uncoated brass, and the sensing surface material is PA12.
Equipped with an M12x1 plug and 4-pin interface, it operates at a voltage of 10 - 30VDC and can function within an ambient temperature range of -25...70°C, with an IP67 protection rating.
It is suitable for various industrial scenarios, accurately and reliably detecting metal objects.
