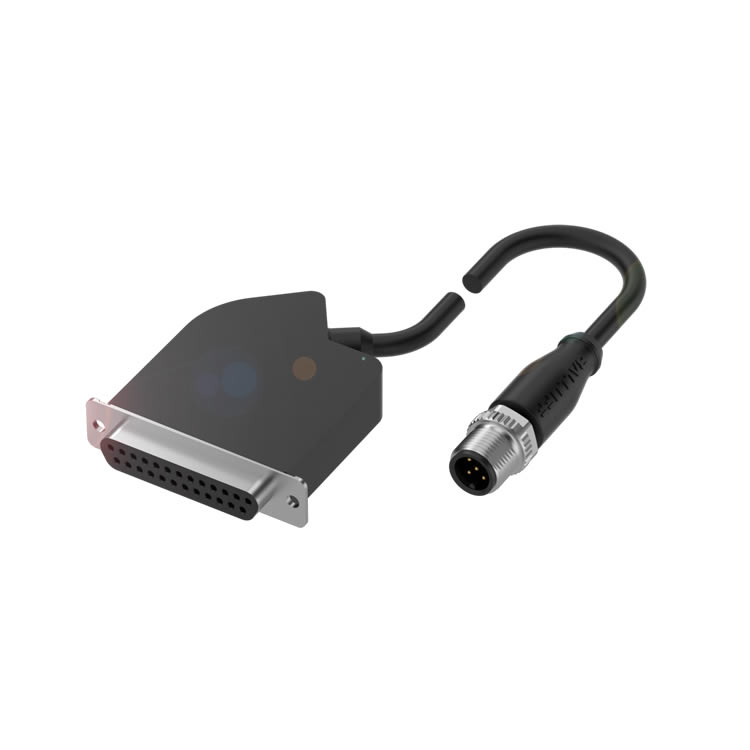

BALLUFF BNI IOL-751-V10-K007 Valve terminal connector
Key features
Version:Power Aux valve terminal connector
Application:SMC VQC 1000/2000/4000
Interface:IO-Link 1.1
Operating voltage Ub:18...30.2 VDC
Connection (COM 1):M12x1-Male, 5-pin, A-coded
Cable length L:0.6 m
Outputs, number:24
Current sum UA, actuator:4 A
Function:4-pin connection,Power Aux on Pin 2
Housing material:PA

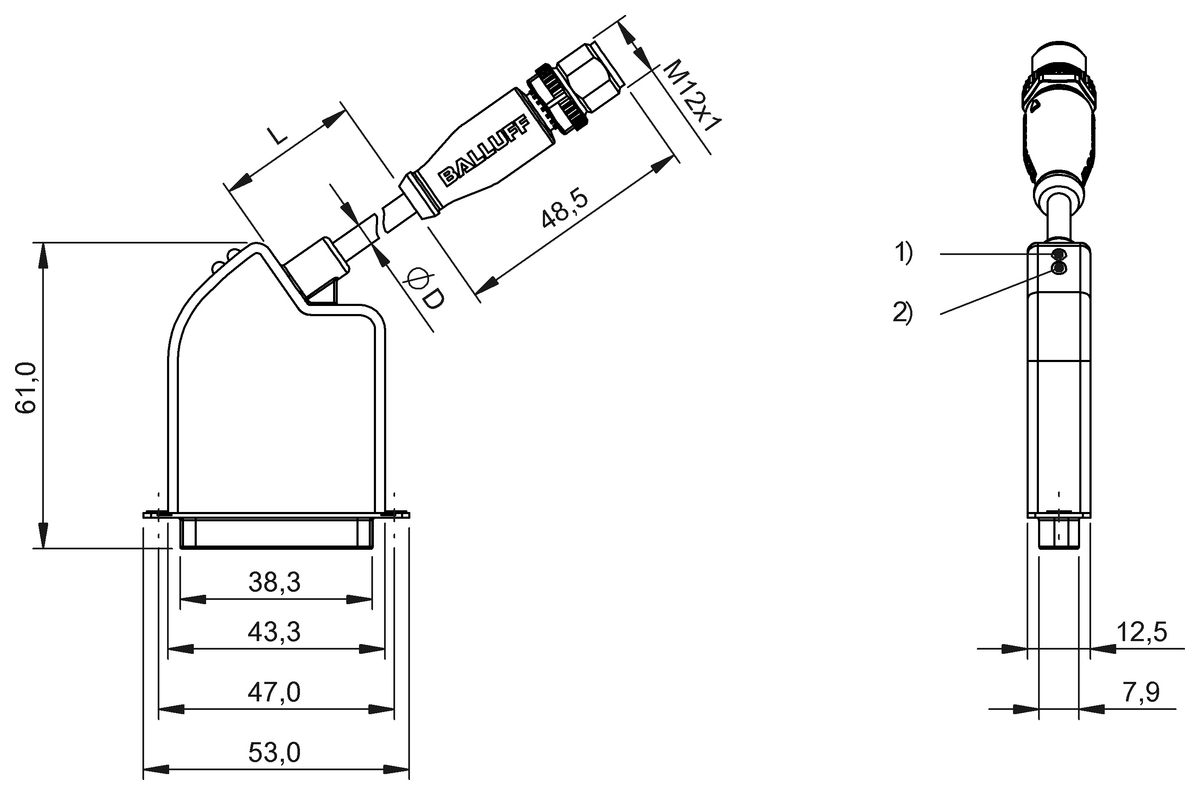

Dimension:53 x 61 x 12.5 mm
Ambient temperature:-5...55 °C
IP rating:IP40, plugged in
Transfer rate:COM2 (38.4 kBaud)
Process data cycle min.:3.5 ms
Process data OUT:4 bytes
