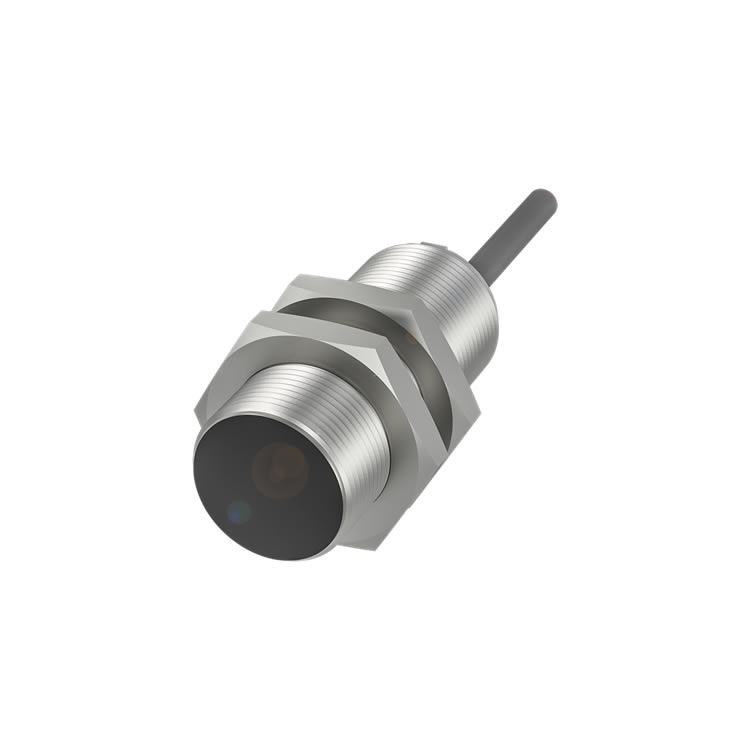

BALLUFF BES M18MG-GSC70B-BV02 Inductive proximity switches
Main features

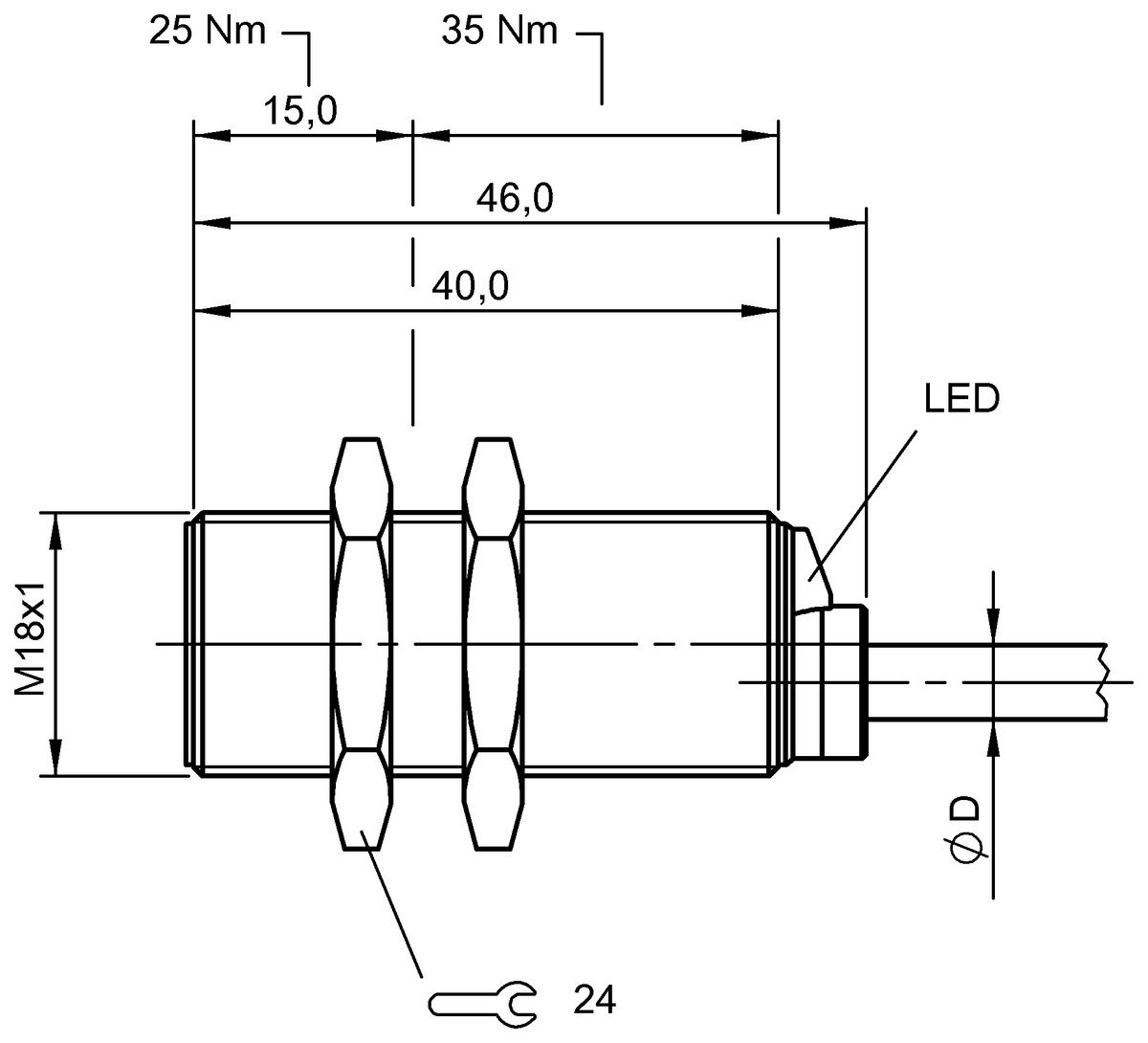

Dimensions: Ø 18 x 46 mm
Housing type: M18x1
Mounting: Flush
Measuring range: 7 mm
Switching output: Polarized normally open (NO)
Switching frequency: 600 Hz
Housing material: Brass, nickel-free coating
Sensing surface material: PA 12
Connection: 2.00 m PVC cable
Operating voltage: Ub: 10...36 VDC
Ambient temperature: -25...70 °C
Protection class: IP67
Approvals/conformities: cULus,CE,WEEE
