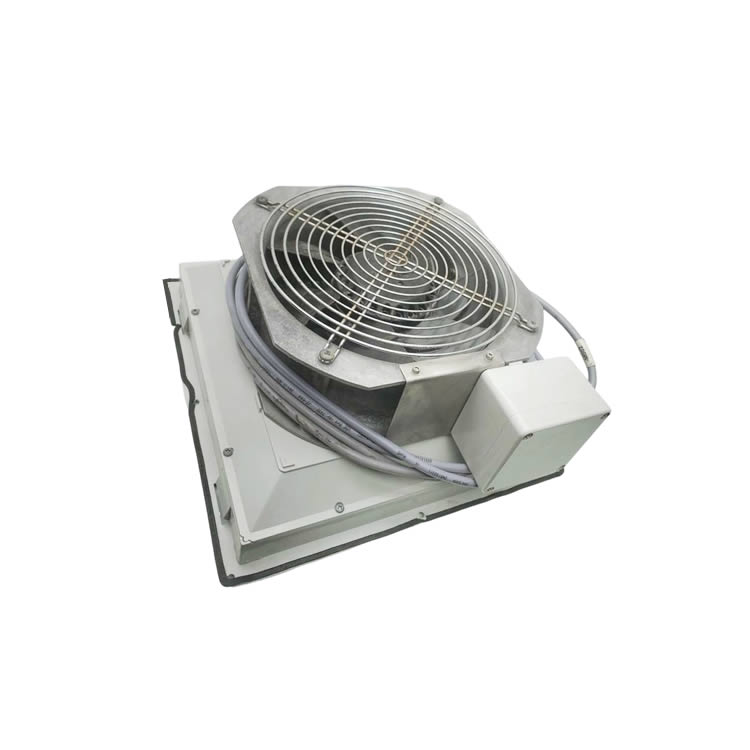

Filter fan LV 600
LV600 is a large‑capacity flat‑design reversible filter fan manufactured by Rübsamen & Herr, outer dimension 323 mm × 323 mm, cut‑out size 292×292 mm, standard IP54 protection class equipped with built‑in G3 filter mat. Max free‑blowing airflow reaches 580 m³/h, 385 m³/h with outlet filter. It adopts snap‑in quick‑mounting structure, provides dust‑filtered high‑volume cooling air for large control cabinets, and IP55 upgrade is available optionally with F5 Z‑Line filter for dusty harsh‑environment applications.
Cabinet and Enclosure Ventilation
Free‑blowing air flow rate: 580 m³/h
Air flow rate with outlet filter: 385 m³/h
Mounting cut‑out: 292 x 292 mm
External dimensions: 323 x 323 mm
Installation depth: 148 mm
Filter mat: P15/350S
Supplied complete with filter mat and seal
Matching outlet filter: GV 600/700
Various filter mats for dust filtration
LV series in flat design with quick‑release fastening
Also available in EMC version
Special colours available on request
