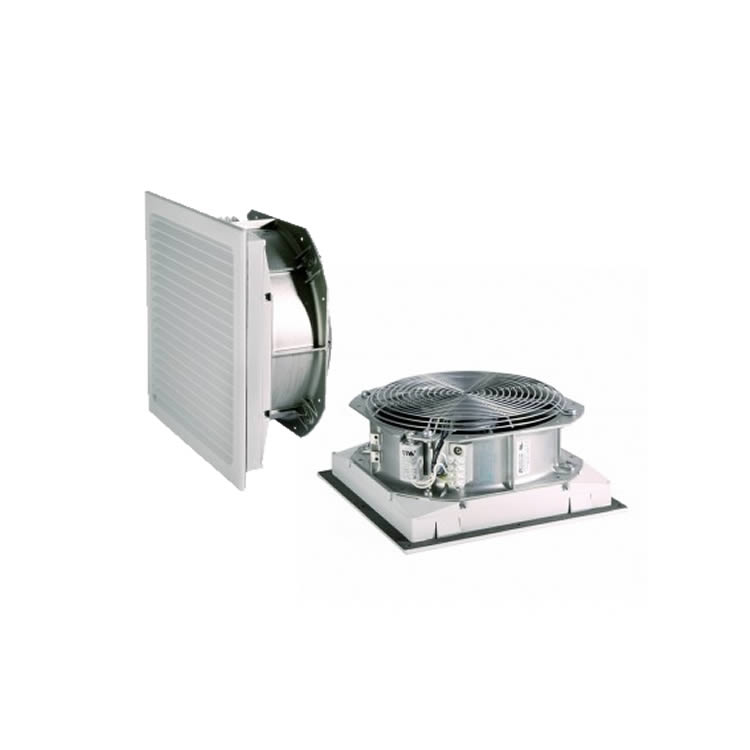

LV800 is the largest‑size high‑performance filter fan from Rübsamen & Herr, delivering maximum airflow up to 970 m³/h, with tool‑free quick‑clip installation and replaceable filter mat. It efficiently dissipates massive heat inside large electrical enclosures while preventing dust ingress, suitable for heavy‑load automation, power‑distribution and industrial equipment cooling projects.
Control cabinet and enclosure ventilation
Free‑blowing air flow rate: 930 m³/h
Air flow rate with outlet filter: 610 m³/h
Mounting cut‑out: 292 x 292 mm
External dimensions: 323 x 323 mm
Installation depth: 140 mm
Filter mat: P15/350S
Supplied complete with filter mat and seal
Matching outlet filter: GV 600/700
LV series with low‑profile design and quick‑release mounting
EMC‑shielded version also available
Special colours available upon request
