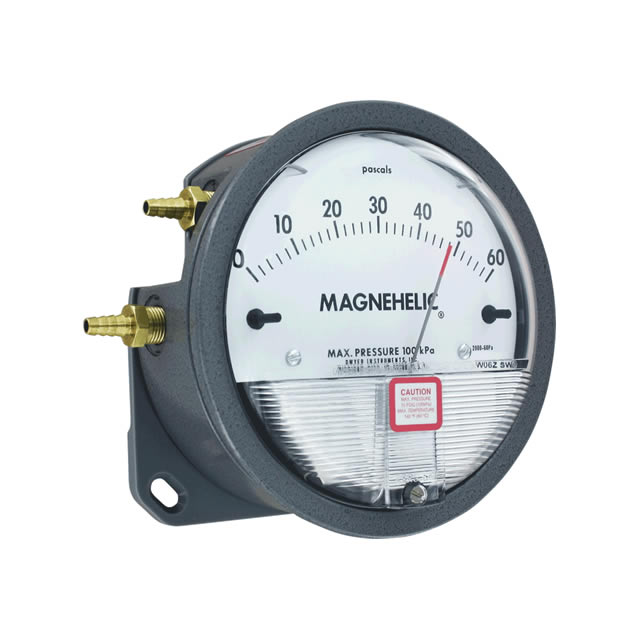

Series 2000 Magnehelic® Differential Pressure Gages
Indicate Positive, Negative or Differential, Accurate within 1%
No Power Required
Low Cost
Used in Isolation/ Hospital Environments and Temporary Units (no power required)

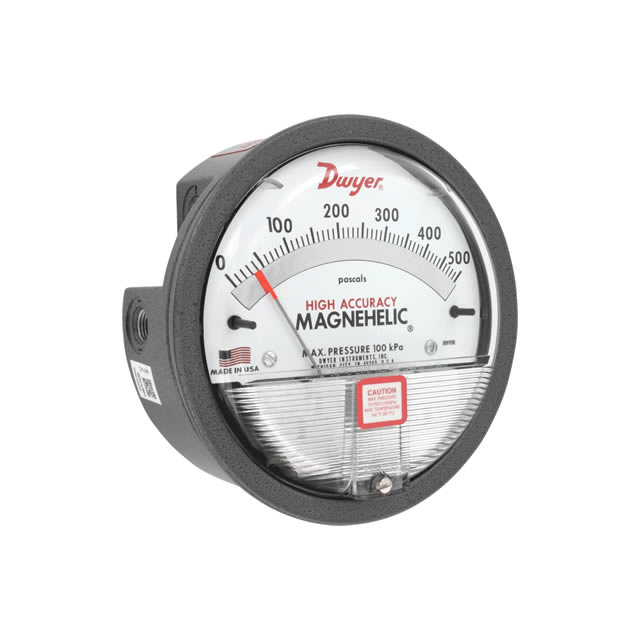

Select the Series 2000 Magnehelic® Gage for a versatile low differential pressure gage with a wide choice of 81 models and 27 options to choose from. Using Dwyer’s simple, frictionless Magnehelic® gage movement, it quickly indicates air or noncorrosive gas pressures--either positive, negative (vacuum) or differential. The design resists shock, vibration, over-pressures and is weatherproof to IP67. Select the -HA High Accuracy Magnehelic® Gage option for an accuracy within 1% of full scale, located below in the Product Configurator. Also included with the –HA option at no extra cost are a mirrored scale overlay and a 6 point calibration certificate.
NIST CALIBRATION available in Product Configurator.
Product Applications
Filter Monitoring
Air Velocity with Dwyer Pitot Tube
Blower Vacuum Monitoring
Fan Pressure Indication
Duct, Room or Building Pressures
Clean Room Positive Pressure Indication
| Model | Description |
|---|---|
| 2000-0 | Differential pressure gage, range 0-0.50" w.c., minor divisions .01, calibrated for vertical scale position. |
| 2000-00 | Differential pressure gage, range 0-0.25" w.c., minor divisions .005, calibrated for vertical scale position. |
| 2000-00N | Differential pressure gage, range .05-0-.2" w.c., minor divisions .005, calibrated for vertical scale position. |
| 2001 | Differential pressure gage, range 0-1.0" w.c., minor divisions .02. |
| 2002 | Differential pressure gage, range 0-2.0" w.c., minor divisions .05. |
| 2003 | Differential pressure gage, range 0-3.0" w.c., minor divisions .10. |
| 2004 | Differential pressure gage, range 0-4.0" w.c., minor divisions .10. |
| 2005 | Differential pressure gage, range 0-5.0" w.c., minor divisions .10. |
| 2006 | Differential pressure gage, range 0-6.0" w.c., minor divisions .20. |
| 2008 | Differential pressure gage, range 0-8.0" w.c., minor divisions .20. |
| 2010 | Differential pressure gage, range 0-10" w.c., minor divisions .20. |
| 2015 | Differential pressure gage, range 0-15" w.c., minor divisions .50. |
| 2020 | Differential pressure gage, range 0-20" w.c., minor divisions .50. |
| 2025 | Differential pressure gage, range 0-25" w.c., minor divisions .50. |
| 2030 | Differential pressure gage, range 0-30" w.c., minor divisions 1.0. |
| 2040 | Differential pressure gage, range 0-40" w.c., minor divisions 1.0. |
| 2050 | Differential pressure gage, range 0-50" w.c., minor divisions 1.0. |
| 2060 | Differential pressure gage, range 0-60" w.c., minor divisions 2.0. |
| 2080 | Differential pressure gage, range 0-80" w.c., minor divisions 2.0. |
| 2100 | Differential pressure gage, range 0-100" w.c., minor divisions 2.0. |
| 2150 | Differential pressure gage, range 0-150" w.c., minor divisions 5.0. |
