0 to 60 MPa (0 to 600 kg/cm²)

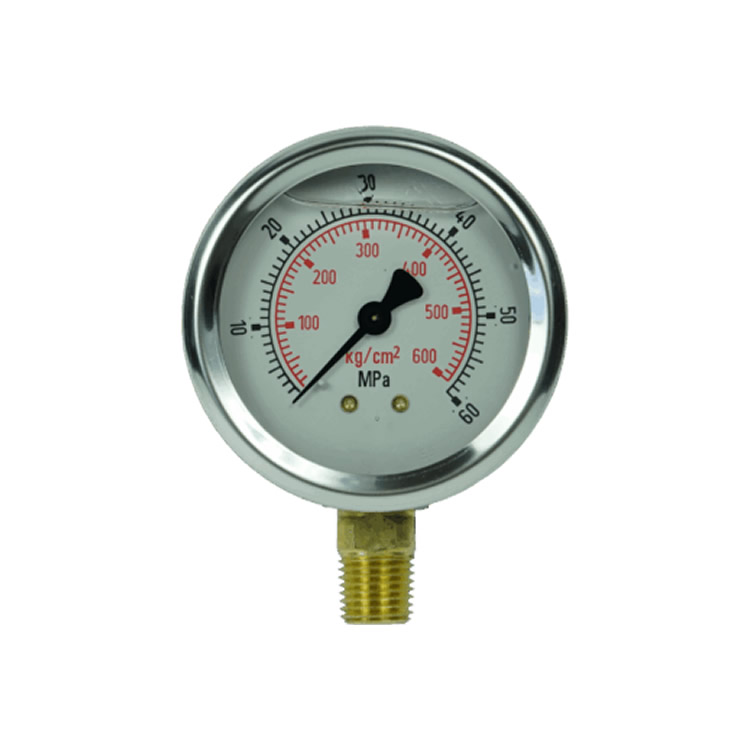

Pressure Gauge, 60 MPa (600 kg/cm2)
HydraCheck MPa pressure gauges are instruments used to measure and display the pressure within hydraulic circuits. These analog gauges are essential for monitoring system performance and ensuring operational safety. They feature robust construction to withstand the high-pressure environments of hydraulic systems. Accurate and reliable, analog pressure gauges are critical for maintaining the efficiency and longevity of hydraulic equipment.
Highest quality, liquid-filled gauges. Features a stainless steel case for protection in harsh environments. Intended for adverse service conditions where pulsating and vibration exist. Suitable for gaseous or liquid media that will not obstruct the pressure system.
Features:
Pressure Range: 0 – 60 MPa (0 – 600 kg/cm2)
Glycerin-filled.
MPa and kg/cm2 scale.
1/4” NPT bottom mount.
Size: 2 1/2″ (63mm).
Specifications:
Accuracy: ±2/1/2% of span (ASME B40.100 Grade A)
Ambient Temperature: -30 – +160°F (-34 – +70°C)
Medium Temperature: +140°F (+60°C) Maximum
Lens: Polycarbonate
Pressure Connection Material: Copper alloy
Bourdon Tube Material: Copper alloy
Movement: Copper Alloy
Dial Material: White ABS
Pointer Material: Black aluminum
Case: 304 stainless steel with vent plug and stainless steel crimp ring. Suitable for liquid filling. Case connection sealed with O-ring.
