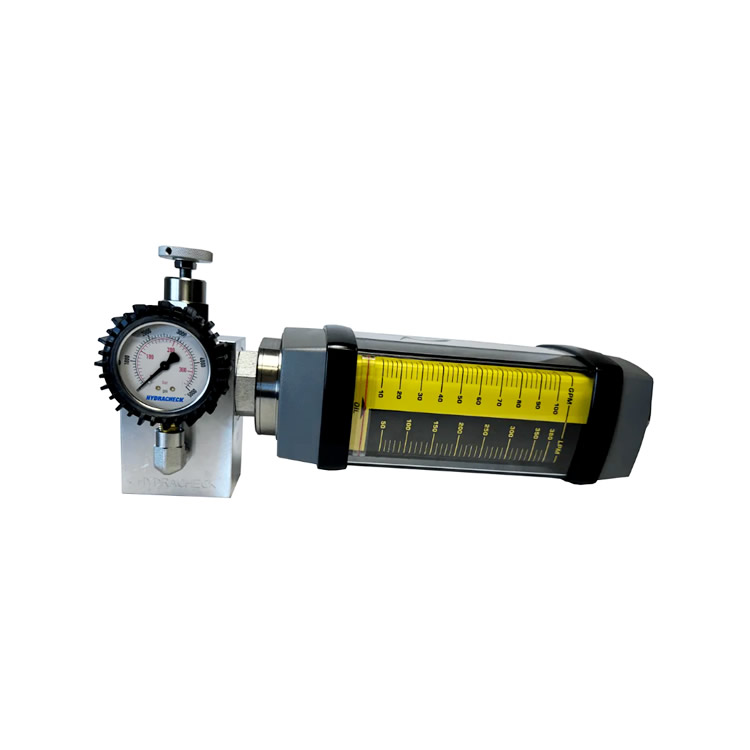

Inline flow meter – 10-100 GPM (380 Lpm)
Adjustable loading valve with built in safety and load sensing port
Comes equipped with a 3500 PSI (241 bar) glycerin-filled pressure gauge with protective rubber boot.
Specifications:
Loading Valve Materials: 7075 Aluminum
Flow Meter Materials: 2024 – T351 Anodized aluminum body, piston and cone
Threads: SAE J1926/1
Media Temperature Range: -4 to +140 °F (-10 to +100 °C)
Pressure Rating: 5,000 psi/345 bar max. with a 3:1 safety factor
Pressure Accuracy: ±1.6% of full scale
Flow Accuracy: ±2% of full scale
Repeatability: ±1%
Calibration: 0.876 Specific Gravity – For use with hydraulic oil
Weight 25.2 lbs
Dimensions 20 × 5.5 × 9 in
Pressure
3500 PSI (241 Bar)
Flow
10 to 100 GPM (50 to 380 LPM)
Port Thread
#20 ORB (SAE)
