0.5 – 5 GPM (2 – 19 Lpm).

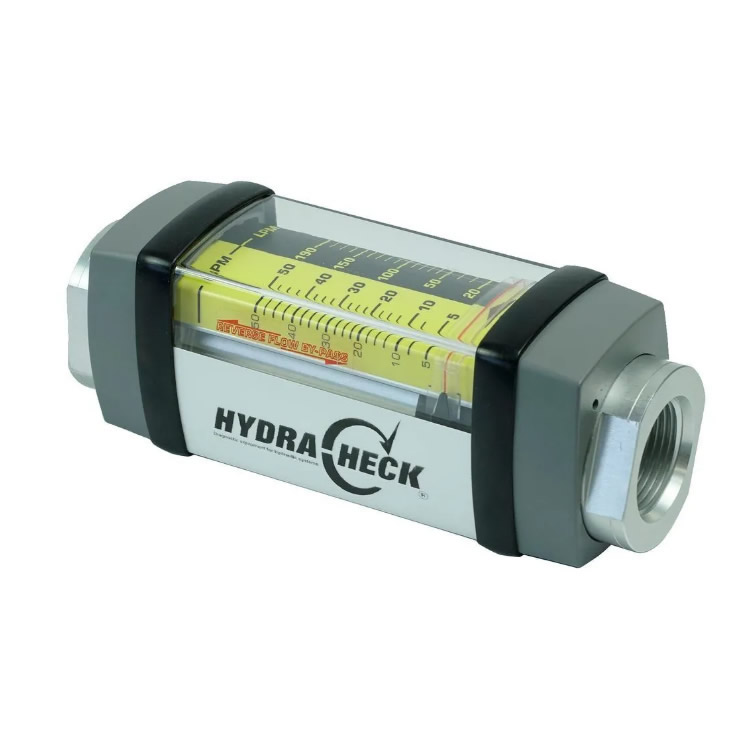

Use these flow meters to setup, adjust and test hydraulic pumps, motors, cylinders, and more!
The only way to test a pump and motors safely and effectively is to use a flow meter.
Specifications:
Materials: T303 Stainless body, 2024 – T351 Anodized aluminum piston and cone.
Pressure Seals: Viton®
Threads: SAE J1926/1
Temperature Range: -20 to +240 °F (-29 to +116 °C)
Pressure Rating: Stainless Steel Operating: 6,000 psi/414 bar max. with a 3:1 safety factor.
Accuracy: ±2% of full scale
Repeatability: ±1%
Calibration: 0.876 Specific Gravity – For use with hydraulic oil
Weight 2.3625 lbs
Dimensions 8 × 3 × 2.75 in
Pressure
6000 PSI
(414 Bar)
Flow
0.5 to 5 GPM
(2 to 19 LPM)
Length
6.6 inches (168 mm)
Port Thread
#10 ORB (SAE)
