0.2 – 2 GPM (1 – 7.5 Lpm).

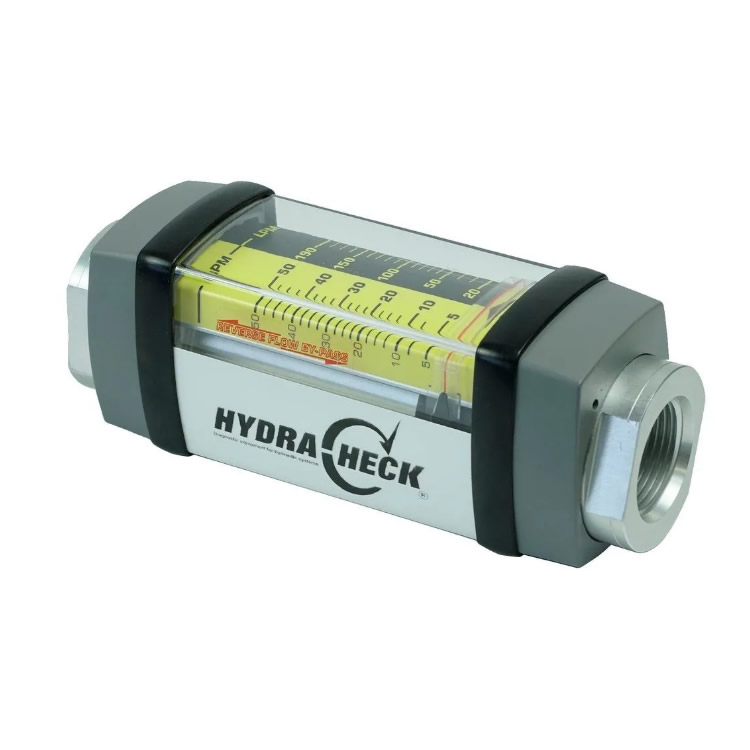

Use these flow meters to setup, adjust and test hydraulic pumps, motors, cylinders, and more!
The only way to test a pump and motors safely and effectively is to use a flow meter.
Specifications:
Materials: 2024 – T351 Anodized aluminum body, piston and cone.
Pressure Seals: Viton®
Threads: SAE J1926/1
Temperature Range: -20 to +240 °F (-29 to +116 °C)
Pressure Rating: Aluminum Operating: 3,500 psi/241 bar max. with a 3:1 safety factor.
Accuracy: ±2% of full scale
Repeatability: ±1%
Calibration: 0.876 Specific Gravity – For use with hydraulic oil
Weight 1.2875 lbs
Dimensions 8 × 3 × 2.75 in
Pressure
3500 PSI
(241 Bar)
Flow
0.2 to 2 GPM
(1 to 7.5 LPM)
Length
6.6 inches (168 mm)
Port Thread
#10 ORB (SAE)
