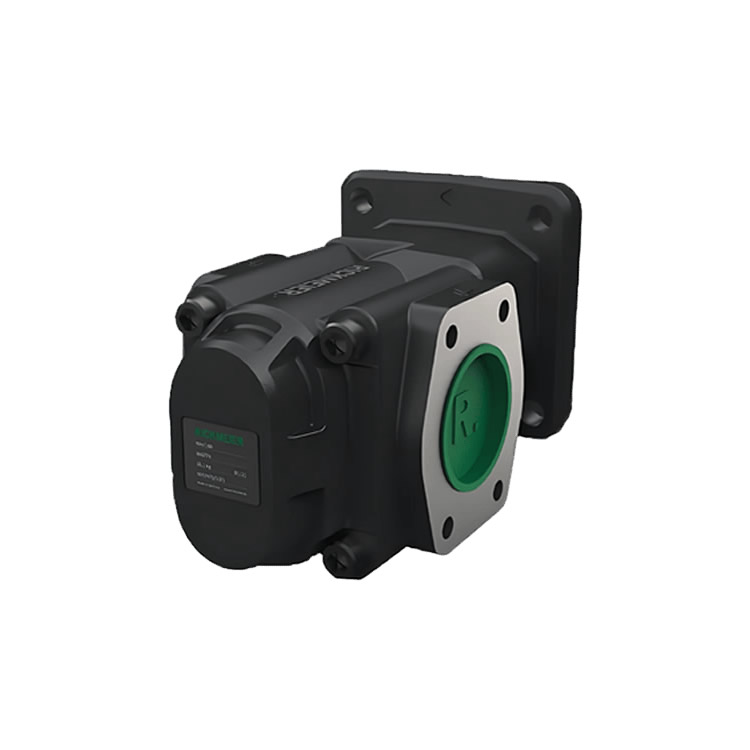

Specification Parameters of Rickmeier Gear Pump R36/63 FL-Z-W-SAE2-R
Pump Series (R36 Series)
Displacement per Revolution (Fördervolumen): 63 cm³
Mounting Method: Flange Connection
Shaft End Type: Cylindrical Shaft
Shaft Seal Type: Single Radial Shaft Seal Ring
Connection Size for Suction and Pressure Ports: SAE2
Rotation Direction: Right-Hand Rotation
Maximum Allowable Working Pressure (P): 25 bar
Maximum Allowable Rotational Speed (n): 3600 min⁻¹
Flow Rate (Q) at 1450 min⁻¹, 5 bar, and Viscosity of 33 mm²/s: 89 l/min
Pump Body Material: EN-GJL-250
Gear Shaft Material: Hardened Carburized Steel
Radial Shaft Seal Ring Material: FKM
O-Ring Material: FKM
Plain Bearing Material: Lead-Free Composite Bearing
Corrosion Protection: RAL 7021 Two-Component Coating
Viscosity Range: 5 mm²/s to 20000 mm²/s
Contamination Level (ISO 4406): - 21/19/17
Gas Content (Undissolved): - 10 Vol.-%
Medium Temperature (with FKM Seals): -25 °C to 150 °C
Inlet Pressure (for Radial Shaft Seal Ring, in Operation): -0.4 bar to 0.5 bar
