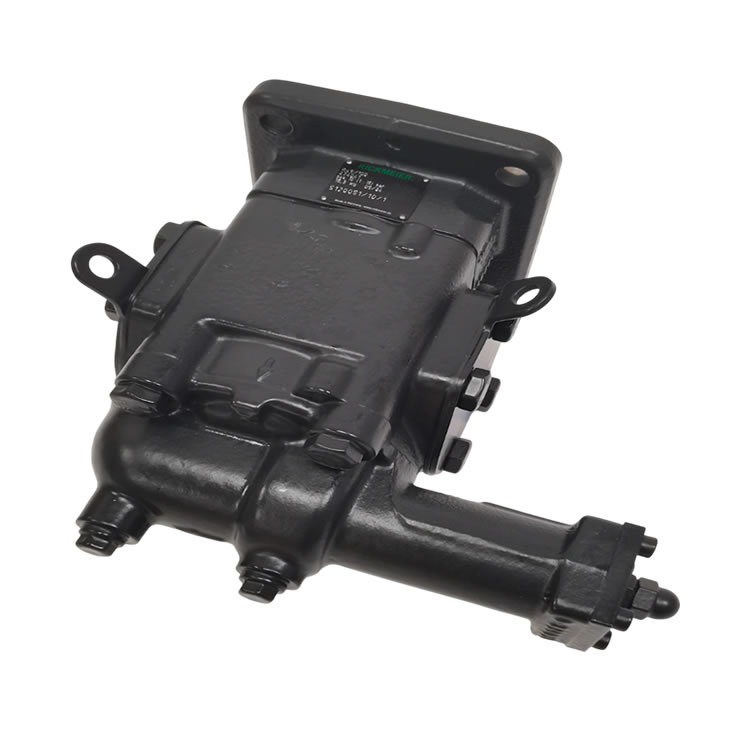

The RICKMEIER oil pump R45/100 FL-Z-W-SAE2-R-SO is a high-performance external gear pump from Germany's RICKMEIER brand, specifically designed for industrial fluid conveyance. This model belongs to the R5 series, renowned for its modular structure, durability, and wide adaptability to various media, making it suitable for lubrication systems, hydraulic power transmission, and fuel conveyance under demanding operating conditions.
Item Number: 439993
Efficient and Reliable Structural Design
Gears and Materials:
The gears are made of quenched and surface-hardened steel (16MnCrS5), offering high hardness and excellent wear resistance to ensure long-term stable operation.
The housing is constructed from gray cast iron (EN-GJL-250/GG-25), which is corrosion-resistant and impact-resistant, with a surface coated with a two-component RAL 6011 anti-corrosion paint.
Sealing System:
Standard radial shaft seals made of NBR/FKM materials are included, with the option to upgrade to mechanical seals (such as a hard carbon/SiC combination) for applications involving high temperatures or corrosive media.
Low Noise and Low Maintenance
Optimized gear meshing and flow channel design result in significantly lower operating noise levels compared to industry standards.
The three-part housing structure allows for quick disassembly and assembly, reducing maintenance costs.
Safety and Compatibility
Explosion-proof design: Certified for use in flammable and explosive environments (such as in the petroleum and chemical industries).
Standardized interfaces: Features SAE flange connections (SAE2.1/2), ensuring compatibility with mainstream industrial piping systems.
