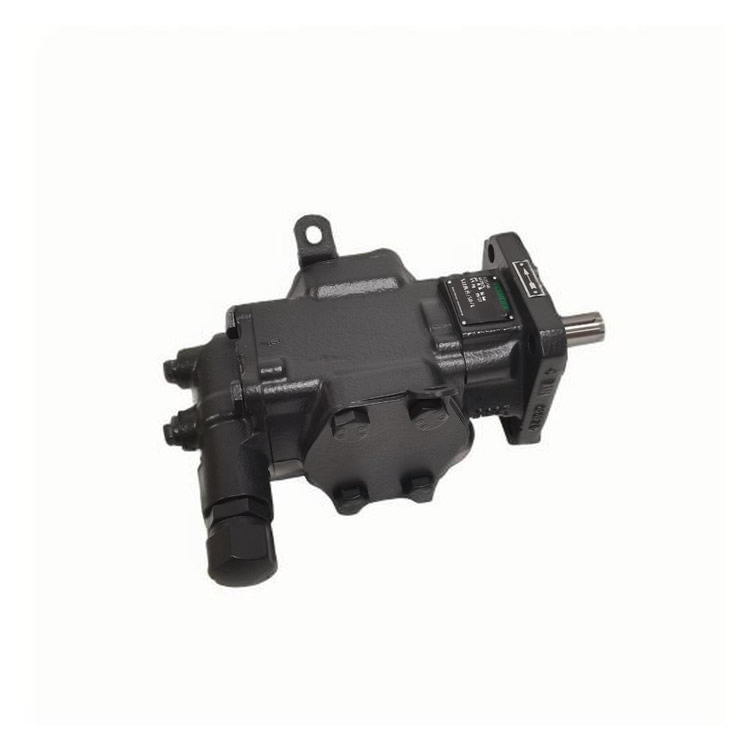

The Rickmeier R35/40 FL-Z-W-SAE1.1/2-R-P 473289 is a high-efficiency gear pump specifically designed for industrial lubrication and hydraulic systems. Its core advantages include high durability, low maintenance requirements, and excellent media adaptability, making it widely applicable in fields such as petroleum, chemicals, shipping, and energy.
Product Code: 473289
Robust Construction and Materials:
Housing: Made of gray cast iron, offering strong corrosion resistance.
Gears: Hardened through quenching steel treatment, providing high wear resistance and supporting the conveyance of high-viscosity media.
Bearings: Composite sliding bearings with a special coating, featuring a long service life and the ability to operate dry (for short periods without lubrication).
Flow Path and Noise Optimization:
A short and straight flow path design enhances oil suction efficiency, and when combined with a special gear profile, achieves extremely low operating noise (<70 dB).
Sealing and Maintenance:
Standard radial shaft seals (with optional mechanical seals) to adapt to different working conditions.
No vulnerable valves/seals, resulting in extremely low maintenance costs and supporting ultra-long continuous operation.
Flow and Pressure Performance:
Displacement: 35 cm³/rev (a typical value for the R35 series).
Maximum Flow Rate: 400 L/min (requires matching motor speed).
Applicable Pressure: Up to 400 bar (requires pairing with a pressure relief valve, such as the RSN series).
