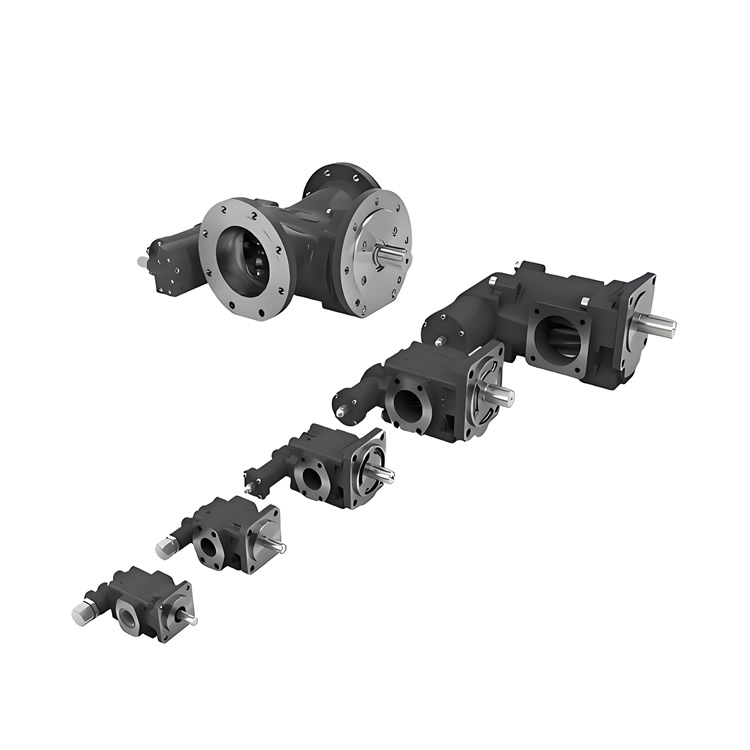

Rickmeier Pump R35/25 FL-Z-DB16-W-SAE1.1/2-L-SO
Item Number: 411459
Core Design
Structure: Dual-gear meshing design, featuring gears made of hardened carburized steel paired with specially coated slide bearings to enhance wear resistance and tolerance to dry running.
Sealing: Standard radial shaft seals (fluororubber), with optional mechanical seals or slip ring seal derivatives to accommodate different media requirements.
Pressure Limiting Valve: Integrated spring-loaded pressure limiting valve (pressure range: 6-16 bar) to prevent system overload.
Noise Control: Optimized tooth profile and fluid channel design for extremely low operating noise.
Applicable Fields
Industrial Lubrication: Lubrication for gearboxes in wind turbines, cooling oil transfer in steel mill equipment.
Fuel Delivery: Fuel supply for diesel engines, power oil source for hydraulic systems.
Chemical Processes: Transfer of lubricating media such as cutting fluids, gear oils, and heat transfer oils.
Construction and Mining Machinery: Hydraulic systems in construction equipment (e.g., cranes, mixing plants) and mining machinery.
Media Restrictions
Applicable Media: Lubricating oils, hydraulic oils, diesel fuel, emulsions, and other lubricating liquids.
Prohibited Scenarios: Media containing hard particles, strongly corrosive substances (such as acids), or high-viscosity non-lubricating media (prone to causing wear).
Cleanliness Requirements: An 80~100μm filter must be installed in the suction line, and a filter of ≥25μm is required in the return line.
