The Rickmeier R35 series gear pumps are the core products of Germany's RICKMEIER company, specifically designed for industrial lubrication, hydraulic systems, and fuel transfer. With their robust construction, low noise levels, and low maintenance costs, these pumps are suitable for the stable transfer of high-viscosity media (such as lubricating oil, hydraulic oil, and fuel).
Brand: RICKMEIER, Germany, founded in 1914

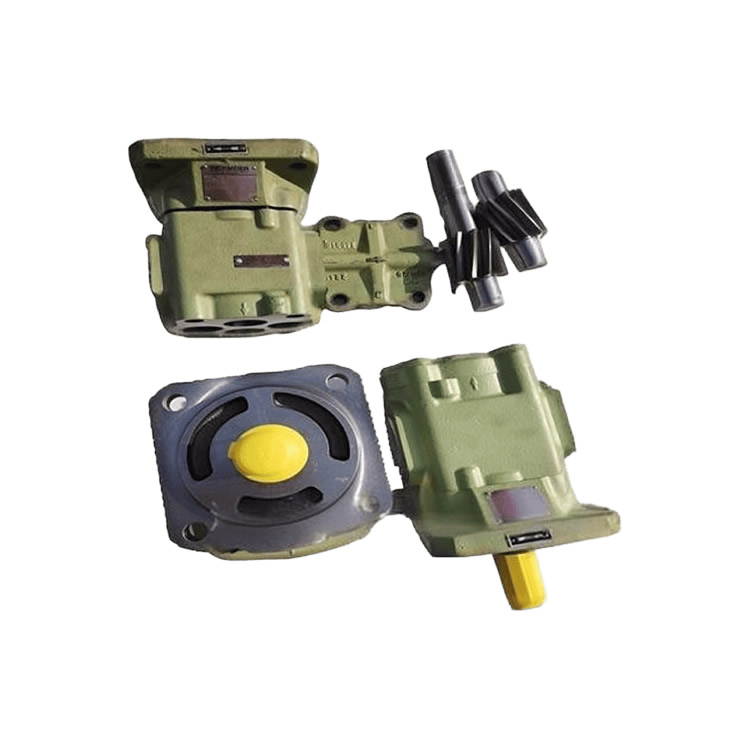

Series Model: R35/86+35/50
Item Number: 402583
Typical Applications: Lubrication systems for wind power generation, hydraulic power sources for large machinery, fuel transfer in ships, cooling of industrial gearboxes, etc.
Key Technical Features
Low Noise and Efficient Transfer
Utilizes special gear design and a short straight-flow channel structure to optimize suction performance, resulting in extremely low operating noise (<70dB).
The bellow drive design (in the R5 series) enhances sealing performance, extends service life, and is particularly suitable for harsh environments such as wind turbines.
Durability and Adaptability
Housing material: Gray cast iron (standard version); gear components: Hardened and carburized steel, offering strong wear resistance.
Slide bearings: Large-sized with special coatings, supporting dry running (start-up without lubrication) and offering a service life of thousands of hours.
Sealing options: Standard radial shaft seals (customizable mechanical seals or fluororubber oil seals), resistant to high temperatures and chemical corrosion.
Modular Design
Three-part housing: Flexibly adapts to customer interfaces (such as SAE flanges, G threads) without the need for custom components.
Drive compatibility: Supports three-phase/single-phase AC motors and DC motors, with standard couplings and protective covers included.
