Performance Specifications:

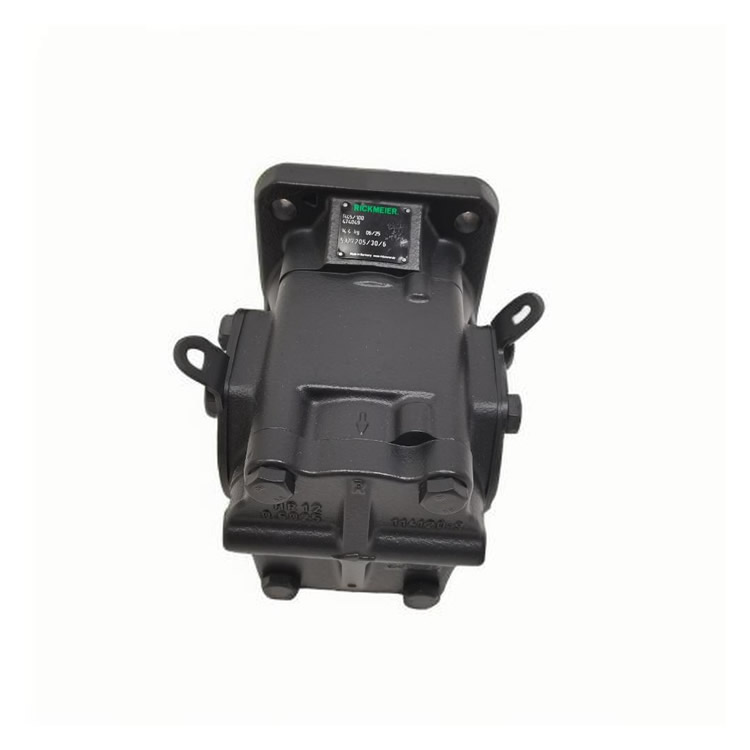

Product Code: 474049
Operating Pressure: Up to 25 bar;
Rotational Speed Range: Up to 3,000 rpm;
Flow Capacity: Up to 4,000 L/min (dependent on rotational speed);
Viscosity Range: 5–20,000 mm²/s (suitable for oils and lubricating media).
Structural Design:
Housing: Gray cast iron (corrosion-resistant, high rigidity);
Gearbox: Hardened steel gears (excellent wear resistance);
Bearings: Special-coated multi-component sliding bearings (support dry running, long service life);
Sealing Options: Standard radial shaft seals, with optional mechanical seals (adapted for high-temperature/corrosive environments).
Environmental Adaptability:
Temperature Range:
NBR seals: -25°C to 80°C;
FKM seals: -25°C to 150°C.
High Efficiency and Low Noise: Short direct flow path design + gear cover noise reduction technology, reducing noise by up to 15 dB(A);
Compact and Durable: Weighing only 1.3–1.7 kg, saving installation space;
Low Maintenance Costs: Sliding bearings resist dry running, reducing downtime and maintenance frequency;
Intelligent Integration: Supports SAE standard flange connections, compatible with remote monitoring by automated control systems.
