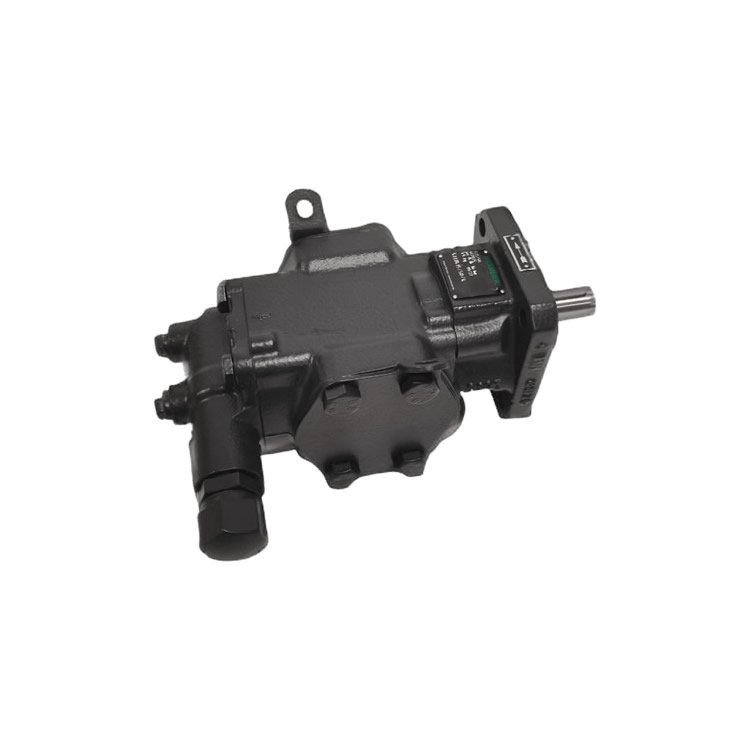

Rickmeier Pump R35/40 FL-Z-DB16-W-SAE1.1/2-L-SO
Item Number: 334048-6
Core Design
Structure: Compact gear pump featuring hardened steel gears and multi-component coated slide bearings, enhancing wear resistance and tolerance to dry running.
Sealing: Standard radial shaft seals (with optional mechanical seals) to accommodate different media and pressure requirements.
Efficiency: Optimized gear meshing and fluid channel design, achieving a volumetric efficiency of over 95% and reducing energy loss.
Applicable Fields
Industrial Applications: Hydraulic systems in construction machinery, mining equipment, generator sets, and the papermaking industry.
Fluid Types: Lubricating oils, hydraulic oils, diesel fuel, cutting fluids, and other lubricating media.
Prohibited Scenarios: Media containing hard particles, strongly corrosive substances (such as acids), or high-viscosity non-lubricating media.
Key Limitations
The medium must be clean and free of impurities. An 80~100μm filter must be installed in the suction line, and a filter of ≥25μm is required in the return line.
The pump must be primed and vented before startup; otherwise, dry running may cause damage.
