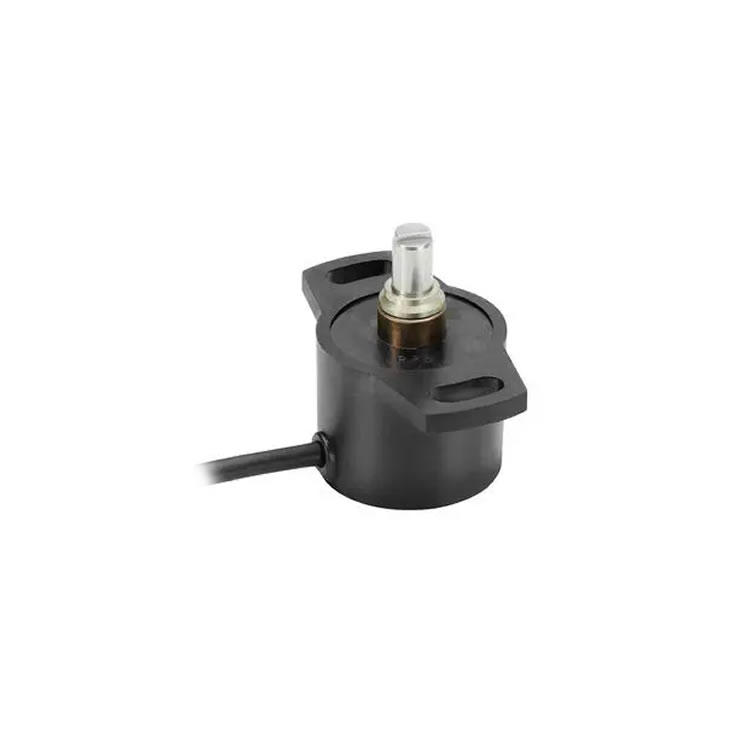

The contactless sensor utilizes the orientation of a magnetic field for the determination of the measurement angle.
The magnetic field orientation is captured with an integrated circuit. An analogue output signal represents the calculated angle.
The housing is made of a special high grade temperatureresistant plastic material.
Fixings are in the form of elongated slots which allow simplicity in mounting together with ease of mechanical adjustment.
The special backlash-free push-on coupling ensures extremely quick and simple installation. The transducer is not sensitive to either dirt or dampnes.
Electrical connection is made via a shielded cable which is sealed into the housing.
Special features
• non-contacting, magnetic
• electrical range 30° up to 360° in 10°-steps available
• available with push-on coupling or marked shaft
• simple mounting
• protection class IP54 or IP65
• long life
• internal resolution 12 Bit
• independent linearity ±0.5 %
• optional output signal redundant (series 700) see separate data shet
