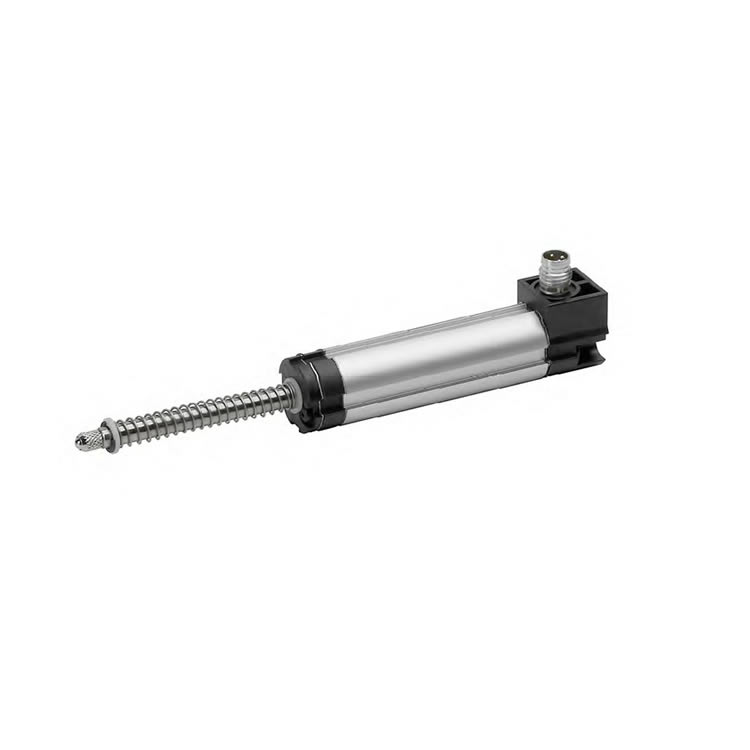

Novotechnik TEX-0010-421-002-101 Displacement Transducer
TEX-0010-421-002-101 - Linear Potentiometer Position Sensor with Spring Voltage Divider 10mm 0.25% 1kOhm Clamp Mount Connector, M8, 3-Pin IP54 TEX
Overview
Novotechnik TEX-0010-421-002-101 is a high-precision Linear Displacement Transducer, which belongs to Novotechnik's TEX series. The sensor uses non-contact measurement technology and is suitable for industrial automation, mechanical control, hydraulic/pneumatic systems and other applications that require accurate measurement of linear displacement.
Key Features
Non-contact measurement:
Adopts magnetoresistive or inductive principle, no mechanical wear, long life and high reliability.
High accuracy and resolution:
Provides excellent linearity and repeatability (typical linearity can reach ±0.1% FS).
Wide measuring range:
The stroke length can be adjusted according to the model (specific parameters need to refer to the specification, such as 10mm, 50mm, etc.).
Output signal:
Analog output (such as 0~10V, ±10V, 4~20mA) or digital interface (such as SSI, CANopen), depending on the model configuration.
Environmental adaptability:
The protection level is usually IP67, resistant to vibration, shock and pollutants in industrial environments (such as oil and dust).
Compact design:
The structure is small and easy to integrate into the mechanical system.
Typical applications
Displacement/position feedback of industrial machinery (such as injection molding machines, presses).
Piston position monitoring of hydraulic cylinders or cylinders.
Precision positioning control in automated production lines.
Test and measurement equipment.
Technical parameters (example)
Supply voltage: 12~30V DC
Output signal: 0~10V (or other optional)
Linearity: ±0.1% FS
Operating temperature: -40°C ~ +85°C
Electrical connection: cable or plug (such as M12 connector)
