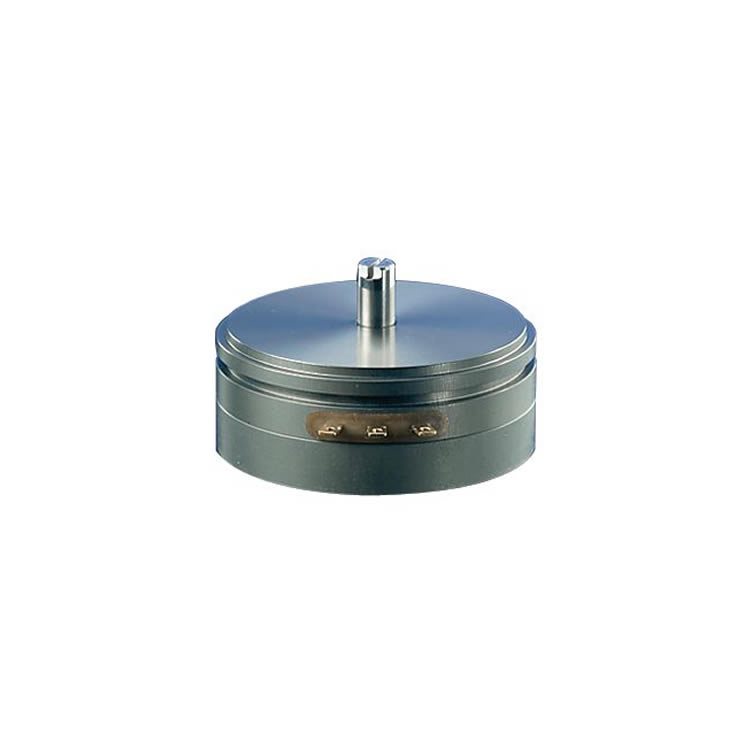

Novotechnik P6501-G252 Angle Sensor
It is a high-precision, non-contact rotary angle sensor, using magnetic induction or potentiometer technology, designed for industrial automation and motion control systems. The sensor provides reliable angular position feedback and is suitable for application scenarios that require accurate rotation angle measurement.
Key Features
Non-contact/potentiometer technology
No mechanical wear (magnetic induction) or long-life conductive plastic potentiometer (contact), suitable for different working conditions.
Anti-vibration and shock resistance, high stability.
High-precision measurement
Typical linearity ±0.5% FS (potentiometer) or ±0.3% FS (magnetic induction), high resolution.
A variety of output signals are available
Analog output (0~10V, 4~20mA)
Resistive output (potentiometer, such as 1kΩ~10kΩ).
Wide measurement range
Single-turn measurement range 0~360°, some models support multi-turn measurement.
Rugged industrial design
Protection level IP54/IP65, adapt to dust, oil and humidity in industrial environments.
Metal housing, resistant to mechanical stress, operating temperature range -40°C ~ +85°C.
Flexible installation
Provides sleeve installation (such as Ø6mm or Ø10mm shaft diameter), compatible with standard mechanical interfaces.
