CONTRINEX DW-AS-613-M8-001 Inductive Proximity Sensor
Brand: CONTRINEX
Model: DW-AS-613-M8-001

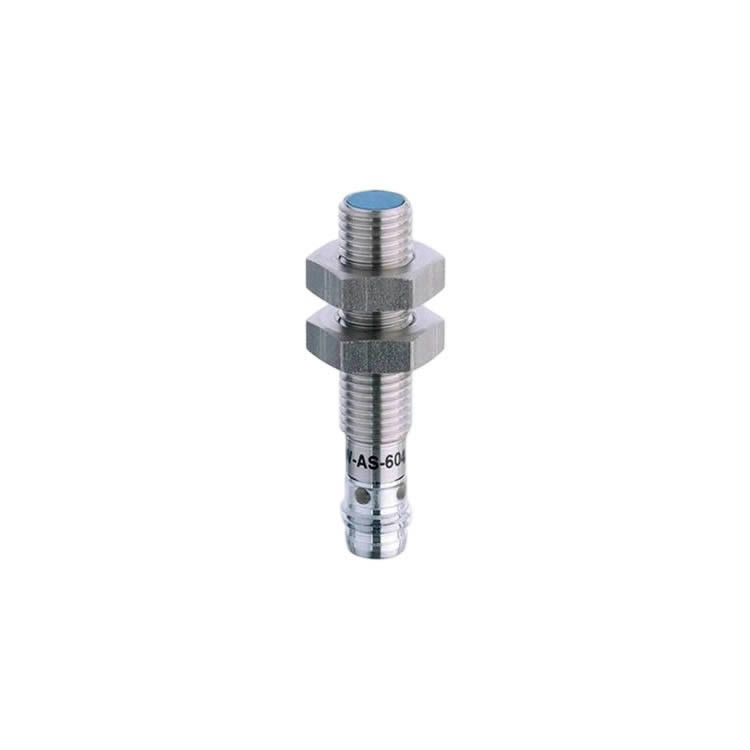

The CONTRINEX DW-AS-613-M8-001 is a cylindrical M8 inductive proximity sensor with a PNP normally open (NO) output. It features a stainless steel V2A housing, an S8 connector, and is embeddable with a 2mm operating distance. It is designed for reliable non-contact detection in industrial automation applications.
Specifications
| Item | Specification |
|---|---|
| Housing Size | M8 |
| Operating Distance | 2 mm |
| Housing Material | Stainless steel V2A |
| Connection | Connector S8 |
| Degree of Protection | IP 67 |
| Mounting | Embeddable |
| Max. Switching Frequency | 5000 Hz |
| Supply Voltage Range | 10 ... 30 VDC |
| Ambient Temperature Range | -25 ... +70 °C / -13 ... +158 °F |
| Output Current | ≤ 200 mA |
| Output Type | PNP NO |
