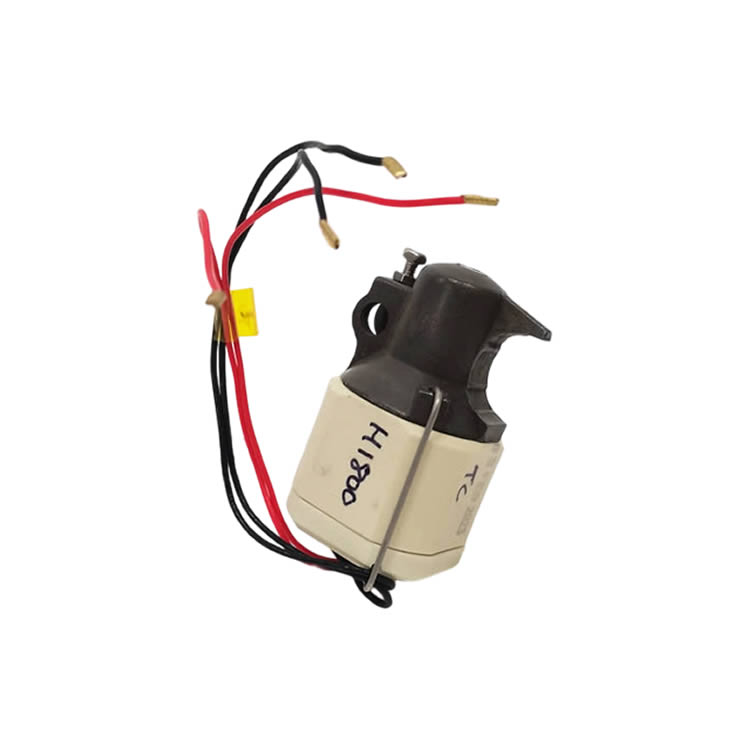

MOBREY SK50 Float Level Switch Mechanism (Magnetic Switch Assembly)
Brand: MOBREY
Model: SK50
Model Number Breakdown
SK50: MOBREY float level switch internal magnetic switch mechanism assembly (spare part number, complete magnetic assembly including internal magnet, contacts, sealed housing)
Specifications
| Item | Specification |
|---|---|
| Operating Principle | Magnetic repulsion snap-action, no mechanical spring, float-side magnet drives internal magnet through isolation wall to toggle contacts |
| Contact Configuration | DPDT, high/low level alarm settable |
| Contact Rating | 250VAC, max. 5A |
| Sealing Structure | Fully metal hermetic seal, contacts do not contact media |
| Operating Temperature | Max. 200°C |
| Pressure Rating | Suitable for boiler drum high-pressure conditions |
| Mechanical Life | Millions of cycles, vibration resistant, no contact bounce |
| Weight | Approx. 0.22kg |
| Compatible Body | MOBREY S01, S03 series horizontal float level switches |
Features
Spring-free magnetic toggle structure, vibration resistant, no contact chatter or sticking, high stability in boiler conditions. Hermetically sealed package, contacts fully isolated from process media, moisture and steam cannot corrode contacts. Magnetic coupling drive, no mechanical linkage through pressure vessel, eliminating external leakage risk. Independently replaceable mechanism; when float body is intact, only SK50 needs replacement to restore level switch, reducing maintenance cost. Suitable for normal and boiler hazardous conditions, with explosion-proof housing available for hazardous areas.
Applications
Power plant boiler drum water level monitoring, pressure vessel high/low level alarms, pump start/stop control, petrochemical tank farms, water treatment pressure vessel level interlock protection.
