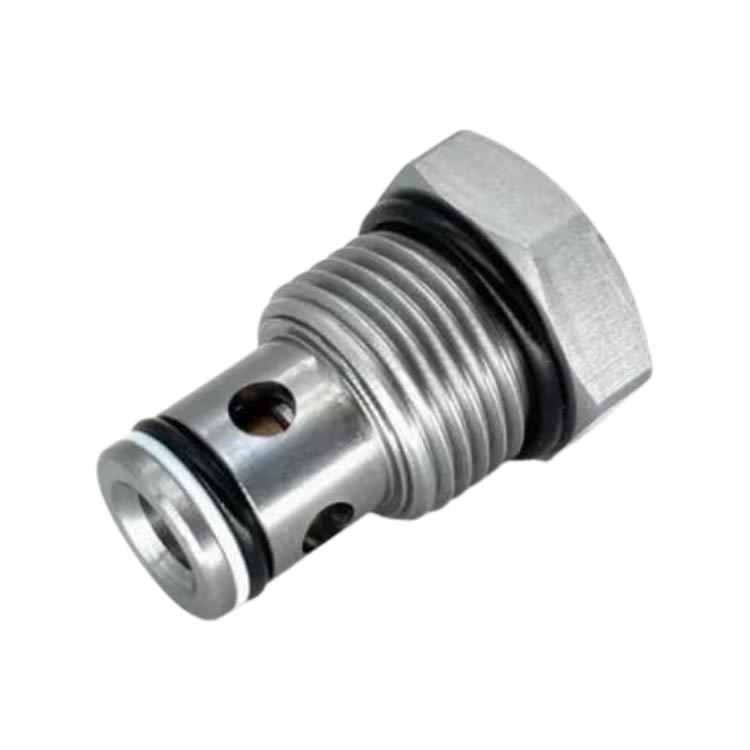

WINNER CV10W2003N One-way valve
It is an industrial one-way valve (also known as a check valve), which is mainly used in fluid pipeline systems to prevent the backflow of media (liquid or gas), ensure one-way flow, and protect key equipment from backflow damage.
1. Core characteristics
(1) Basic parameters
Type: Spring-loaded one-way valve
Seal: PTFE (polytetrafluoroethylene), NBR (nitrile rubber) or fluororubber (FKM), suitable for different media.
Burst pressure: ≥2×working pressure.
Temperature range: -20°C to +120°C (depending on the sealing material).
(2) Fluid compatibility
Applicable media: water, oil, air, steam, weak acid/alkali and other non-corrosive fluids.
Flow direction: One-way flow (the direction marked by the arrow is the allowed flow direction).
(3) Performance characteristics
Low opening pressure: The spring design ensures fast response, and the minimum opening pressure can be as low as 0.1 bar.
Zero leakage: Precision valve seat design, completely sealed when closed.
Resistant to high pressure shock: suitable for fluid systems with large pulses or fluctuations.
