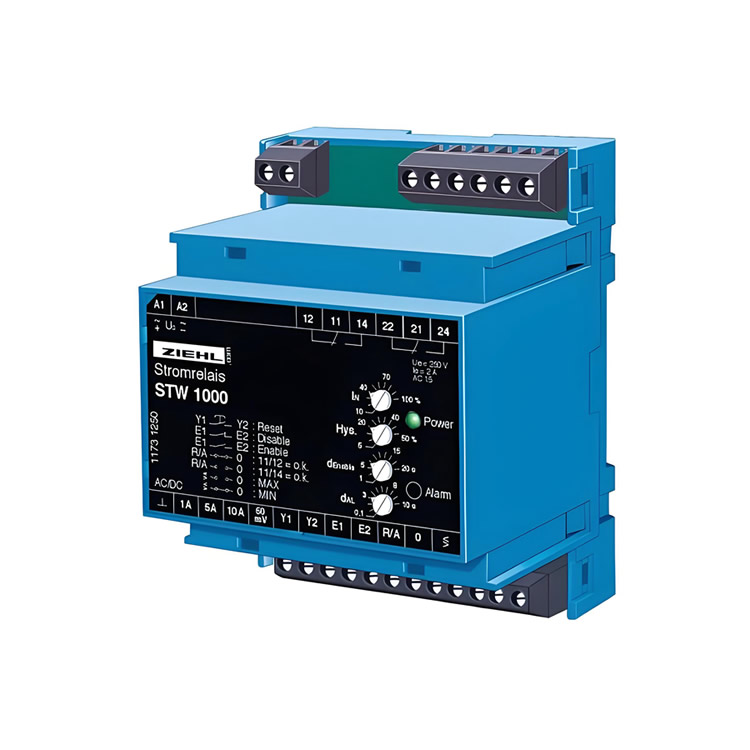

Model: S225684
Power Supply Voltage Us: AC/DC 24–240 V (Range: AC 20–264 V, DC 20.4–297 V)
Power Consumption: < 3 W, < 5 VA
Measured Current Type: DC or AC (single-phase)
Frequency Range: 0 Hz / 40–400 Hz
Measurement Inputs: 1 A, 5 A, 10 A (directly or via transformer), 60 mV (for external shunt)
Internal Resistance:
60 mV: 40 kΩ
1 A: 0.1 Ω
5 A: 20 mΩ
10 A: 10 mΩ
Overload Capacity (Continuous/Peak):
60 mV: 10 V / 10 V
1 A: 2 A / 5 A
5 A: 7.5 A / 15 A
10 A: 11 A / 20 A
Switching Point Setting Range: 10% – 100% of rated current (IN)
Hysteresis Adjustment Range: 5% – 50% of switching point
Setting Error: < 10%
Repeatability Error: ± 0.2%
Temperature Dependency: ≤ 0.05 %/K
Startup Delay: 1 – 20 seconds (adjustable)
Switching Delay: 0.1 – 10 seconds (adjustable, used to suppress short-term peaks)
Relay Outputs: 2 sets of change-over contacts
Operating Modes: Operating mode or closed-circuit mode can be selected via bridging
Interlock Switching: Selectable via bridging
Status Indication: LED displays relay status
Ambient Temperature Range: -20°C to +55°C
Enclosure Dimensions (Height × Width × Depth): 90 × 70 × 58 mm (Design V4)
Installation Method: 35 mm DIN rail (EN 60715) or M4 screws
Protection Ratings: IP 30 / IP 20
Weight: Approximately 180 g
