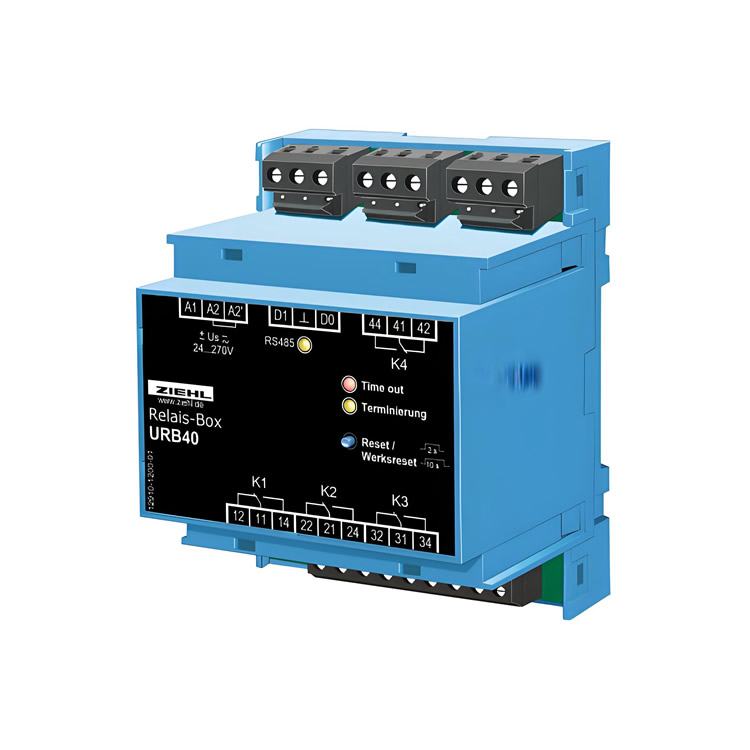

Application: Serving as an expansion for UR series equipment, providing additional relay outputs
Communication Method: Modbus RTU protocol via RS-485 interface
Control Method: No operating elements; fully configured and controlled through the RS-485 interface
Communication Monitoring: Supports communication timeout detection, with the relay able to switch to a preset state upon timeout
Power Supply Specifications
Rated Supply Voltage (Us): DC/AC 24–270 V
Frequency: 0/50/60 Hz
Voltage Tolerance:
DC: 20.4–297 V
AC: 20–297 V
Relay Outputs
Quantity: 4 (K1–K4)
Type: 4 × 1 changeover contacts (single-pole double-throw)
Maximum Switching Voltage: AC 300 V / DC 300 V
Maximum Inrush Current (NO contacts): AC 15 A (for 4 seconds, 10% duty cycle)
Minimum Switching Values: 12 V / 10 mA
Maximum Switching Capacity:
AC (cos φ = 1): 1500 VA
DC (resistive):
0.3 A @ 300 V
0.4 A @ 120 V
0.8 A @ 60 V
8 A @ 30 V
Rated Operating Current (DC-13):
2.0 A @ 24 V
0.4 A @ 120 V
0.2 A @ 240 V
