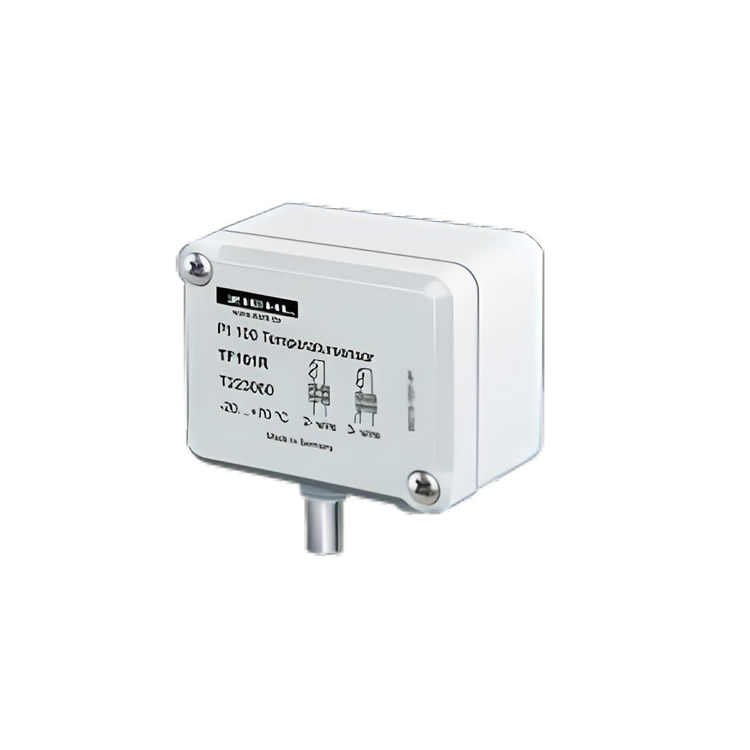

Sensor Model: TF101R
Type: Pt100 Platinum Resistance Temperature Sensor
Measurement Range: -20°C … +70°C
Application: Used for measuring indoor or outdoor ambient temperature
Protection Rating: IP54
Wiring Configuration: Supports 2-wire or 3-wire connections
Enclosure Dimensions (Width × Height × Depth): 65 mm × 50 mm × 38 mm
Weight: Approximately 70 g
Part Number: T223060
Nominal Resistance: 100 Ω at 0°C
Temperature Coefficient: 3.85 × 10⁻³/K
Accuracy Class: Class B, DIN EN 60751
Δθ = ±(0.3 + 0.005·θ) [°C]
Test Voltage: 2.5 kV AC (not applicable for part numbers 019061 and T223047)
Lead Wire Type: PTFE-insulated silver-plated stranded copper wire, 0.14 mm², or PVC-insulated copper wire
Heat-shrink Tubing Material: Kynar
Maximum Sensor Temperature: 200°C (for a maximum of 170 hours)
