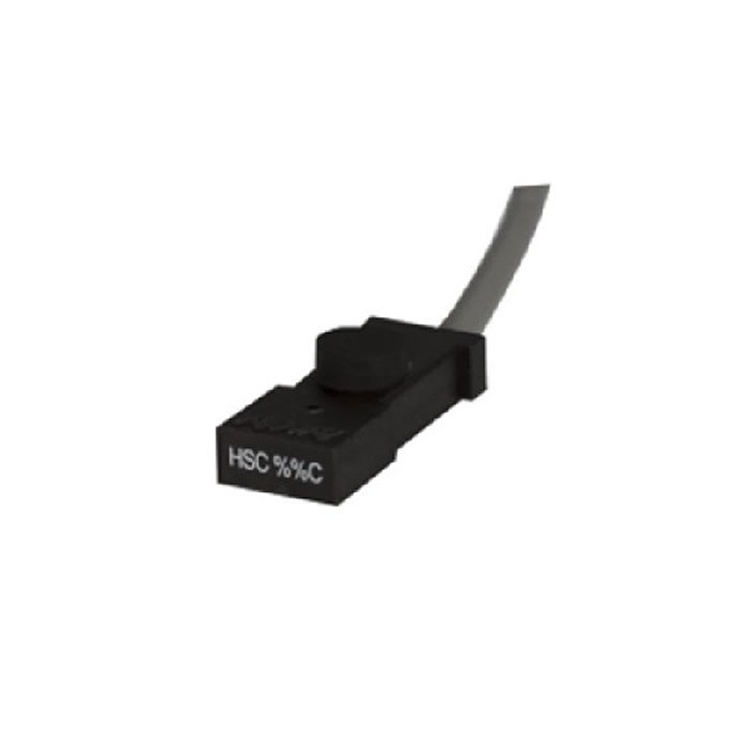

U.S. Bimba HSKQ-09 Magnetic Switch
Core Parameters and Performance Characteristics
Electrical Characteristics: The HSKQ-09 adopts an NPN sinking circuit design and is equipped with an LED indicator light for real-time monitoring of the switch status. It can operate stably under a DC voltage of 30VDC with a maximum load current of 150mA [HSK]. It can seamlessly interface with various control systems, meeting the electrical signal transmission requirements in different industrial scenarios.
Connection Method: This magnetic switch uses an M8 male connector [Q] for wire connection. This connection method not only facilitates easy installation but also offers excellent stability and anti-interference capabilities. It effectively prevents connection loosening or unstable signal transmission caused by factors such as vibration and oil contamination in industrial environments.
Dimensions: The band size is 1-1/16" (27mm) [09]. Its compact design allows for flexible installation in equipment with limited space, making it particularly suitable for automated production lines and mechanical equipment with strict installation size requirements. Additionally, the product includes a band for easy installation and fixation by users.
Application Scenarios
The HSKQ-09 magnetic switch is widely used for position detection in linear motion equipment such as cylinders and hydraulic cylinders. For example, in automated material handling systems, it can accurately detect the position of cylinder pistons, thereby controlling robotic arms to precisely grasp and place materials. In machine tool processing equipment, it can monitor the movement position of the worktable in real-time to ensure processing accuracy. Furthermore, on automated production lines in industries such as food packaging and electronics manufacturing, this magnetic switch can also support efficient equipment operation with its reliable performance.
