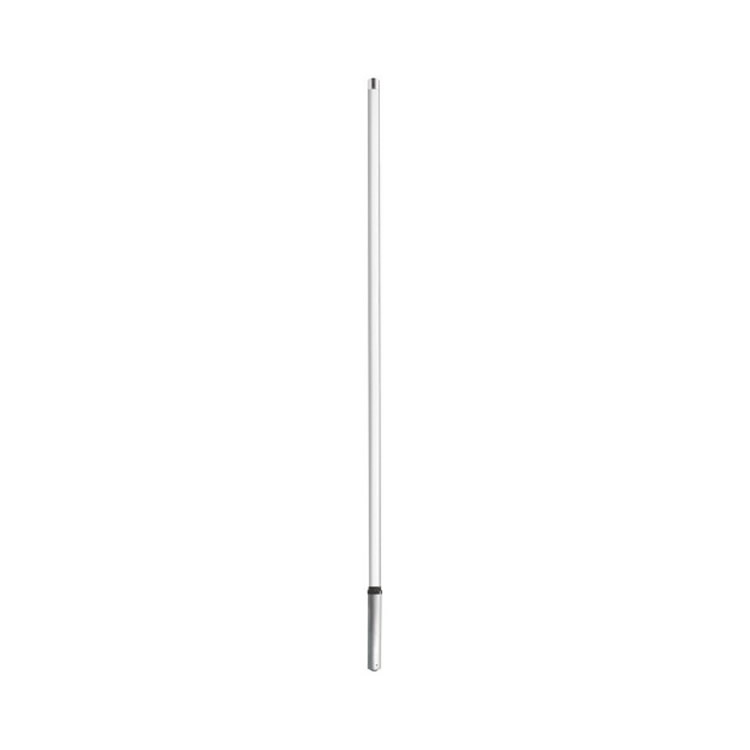

Model: 4240.09-875-T0
Frequency: 790 - 960 MHz
Max. Input Power: 400 W
Omni Deviation: < ±1 dB
Polarisation: Vertical
Peak Instantaneous Power (PIP): 25 kW
3 dB Beamwidth, E-Plane: 8° ±1°
3 dB Beamwidth, H-Plane: Omnidirectional
Impedance: 50 Ω
Gain: 9 dBd (11.2 dBi)
VSWR: < 1.5:1
Passive Intermodulation: -153 dBc (3rd Order, 2 x Tx @ 43 dBm)
Lightning Protection: Lightning current handling capability:
200 kA in accordance with EN 62305-1 (Test pulse 10/350 μs)
Antistatic Protection: All metal parts are DC-grounded (The connector shows a DC short).
