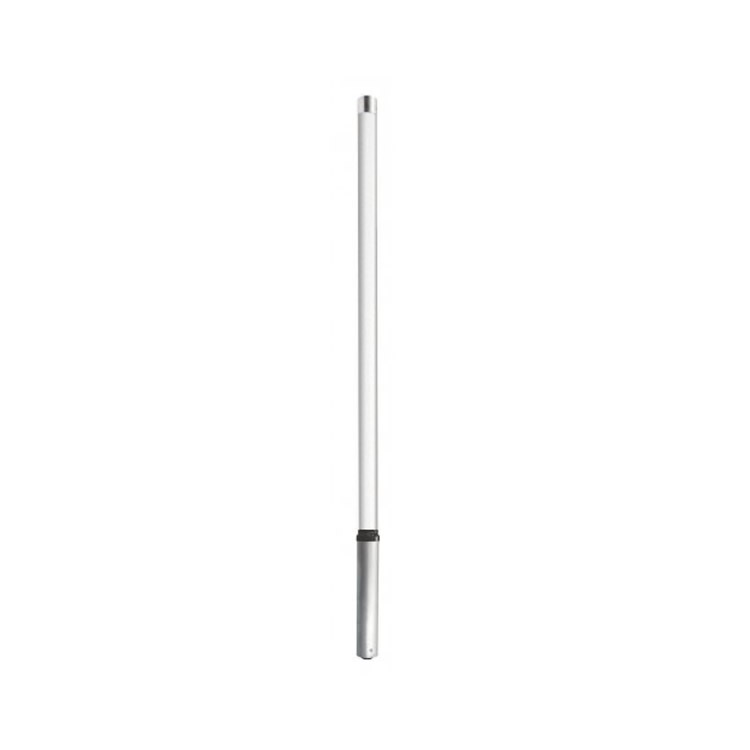

Model: 4240.03-875-T3
Frequency: 790 - 960 MHz
Maximum Input Power: 350 W
Omnidirectional Deviation: < ±1 dB
Polarization: Vertical
Peak Instantaneous Power (PIP): 25 kW
3 dB Beamwidth (E-Plane): 32° ±1°
3 dB Beamwidth (H-Plane): Omnidirectional
Impedance: 50 Ω
Gain: 3 dBd (5.2 dBi)
Voltage Standing Wave Ratio (VSWR): < 1.5:1
Passive Intermodulation: -153 dBc (3rd Order, 2 x Transmitter @ 43 dBm)
Lightning Protection: Lightning current handling capacity: 200 kA in accordance with EN 62305-1 (Test pulse 10/350 μs)
Antistatic Protection: All metal parts are DC-grounded (The connector shows a DC short)
