Founded in 1901, Humphrey (an American company) is a globally leading manufacturer of pneumatic components, specializing in the research, development, and production of solenoid valves, cylinders, exhaust valves, and other products, with over 120 years of technological accumulation. Its products are renowned for their high reliability, precision control, and environmental adaptability, widely applied in demanding industrial scenarios such as energy, chemical engineering, and automated production lines.

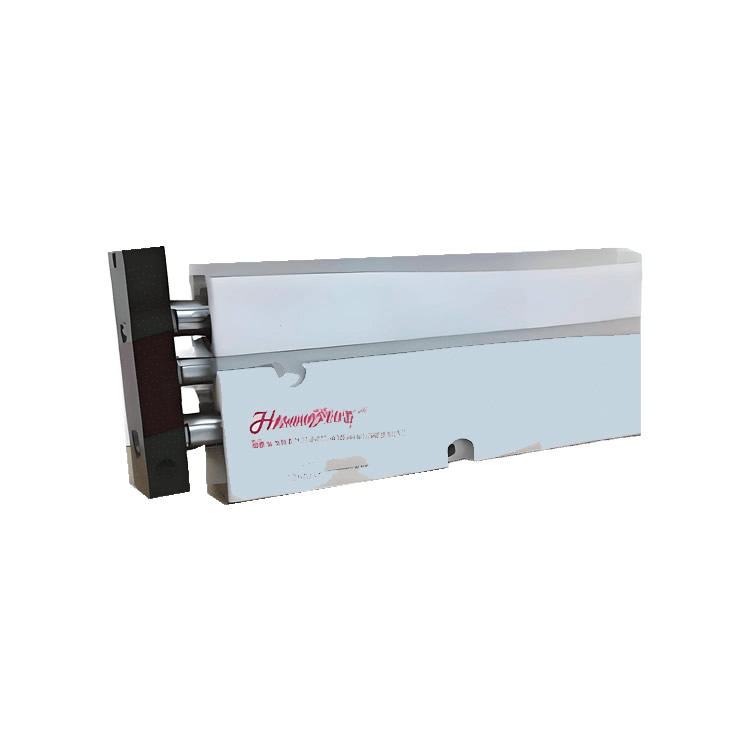

HTBDA 16×2 Cylinder
Optimized Double-Acting Structure
• Bidirectional Thrust Output: Alternating air intake on both sides of the piston enables push-pull bidirectional motion, with行程 (stroke) control accuracy reaching ±0.1mm. It is suitable for automated equipment requiring precise reciprocating motion (such as robotic gripping and conveyor belt positioning).
• Compact Cylinder Body: With a bore diameter of 16mm and a stroke of 50mm (2 inches), the axial size is optimized for installation in compact equipment with limited space. Weighing only 0.8kg, it reduces system load.
• Corrosion-Resistant Material: The cylinder tube is made of hard anodized aluminum alloy, and the piston rod is hard chrome-plated, resistant to acid-base media and dust erosion in chemical environments, with a service life exceeding 5 million cycles.
Functional Expansion and Compatibility
• Integrated Magnetic Induction Switch: Optional DC24V solid-state magnetic switches (W1H series) provide real-time feedback of piston position signals, supporting precise PLC control with a response time of <2ms.
• Multi-Interface Adaptability: Standardly equipped with 1/8-inch NPT pneumatic interfaces, it supports G1/8 or M5 adapters and is compatible with ISO standard pneumatic systems, reducing integration complexity.
• Buffer Design: Built-in rubber buffer pads at both ends absorb impact forces at the end of the stroke, stabilizing piston speed within the range of 50–500mm/s and reducing equipment vibration damage.
Typical Application Scenarios
Industrial Automation Production Lines
• Electronic 3C Manufacturing: Used for component picking and positioning in SMT placement machines, achieving micron-level precision placement in conjunction with vacuum suction cups.
• Packaging Machinery: Drives the reciprocating motion of sealing fixtures, supporting high-speed cycling of 60 times per minute and compatible with food-grade oil-free lubrication requirements.
Energy and Chemical Equipment
• Valve Actuators: Controls the opening and closing of pipeline ball valves, with corrosion-resistant design suitable for high-sulfur environments in oil and gas fields.
• Safety Interlock Devices: Triggers emergency braking in explosion-proof areas (Ex IIB T3 rating) with a response delay of <50ms.
Automotive Manufacturing
• Seat Adjustment Systems: Precisely adjusts the backrest angle with bidirectional thrust, with noise levels ≤45dB(A), enhancing riding comfort.
• Welding Robots: Integrated into welding gun drive modules, enabling rapid switching of fixtures for multiple vehicle models.
The Humphrey HTBDA 16×2 cylinder provides a cost-effective power solution for automated systems through bidirectional precision drive, compact corrosion-resistant structure, and modular expansion capabilities. Its adaptability covers diverse scenarios from clean workshops to harsh industrial environments, making it a key actuator for enhancing equipment reliability and energy efficiency.
