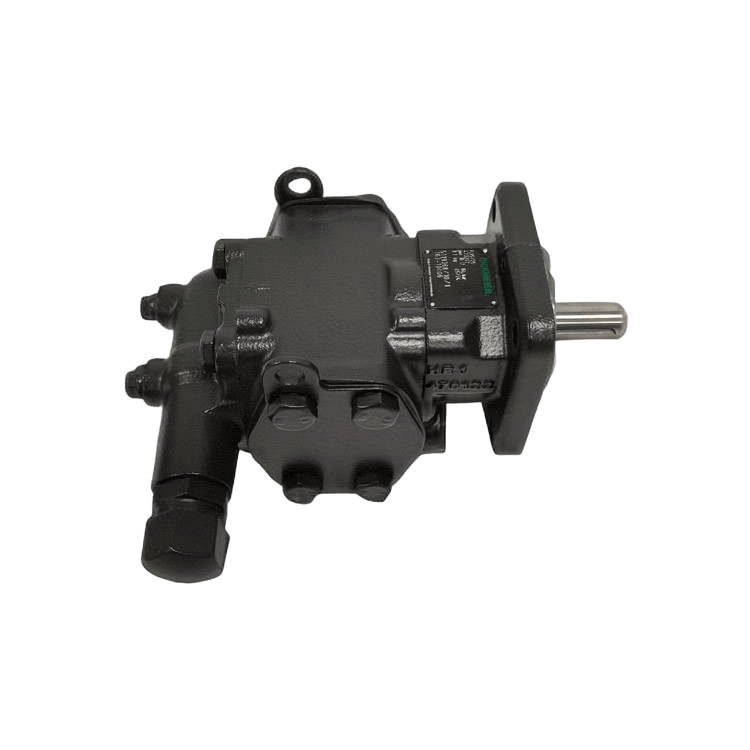

Rickmeier Oil Pump Model R35/25 FL-M-DB16-W-SAE1.1/2-R-SO
Item Number: 334058-5
The Rickmeier R35/25 series is an external gear pump manufactured by RICKMEIER (established in 1914), a German company. It belongs to the standard R5 series and is renowned for its robust structure, stable flow rate, and low noise. Designed specifically for conveying lubricating oils, fuel oils, and industrial oils, it is suitable for high-pressure and high-viscosity media environments.
Model: R35/25 FL-M-DB16-W-SAE1.1/2-R-SO
Drive Method: Electric pump
Connection Specification: SAE 1.1/2 flange (right-hand rotation)
Maximum Operating Pressure: 16 bar (standard pressure-limiting valve included)
Flow Rate Range: 25–40 m³/h (depending on specific operating conditions)
Media Viscosity: 5×10⁻⁵ to 1.5×10³ m²/s (compatible with heavy oils to low-viscosity gasoline)
Media Temperature: ≤120°C (heat-resistant seals required for high temperatures)
Materials: Cast steel/cast iron housing, hardened carburized steel gears
