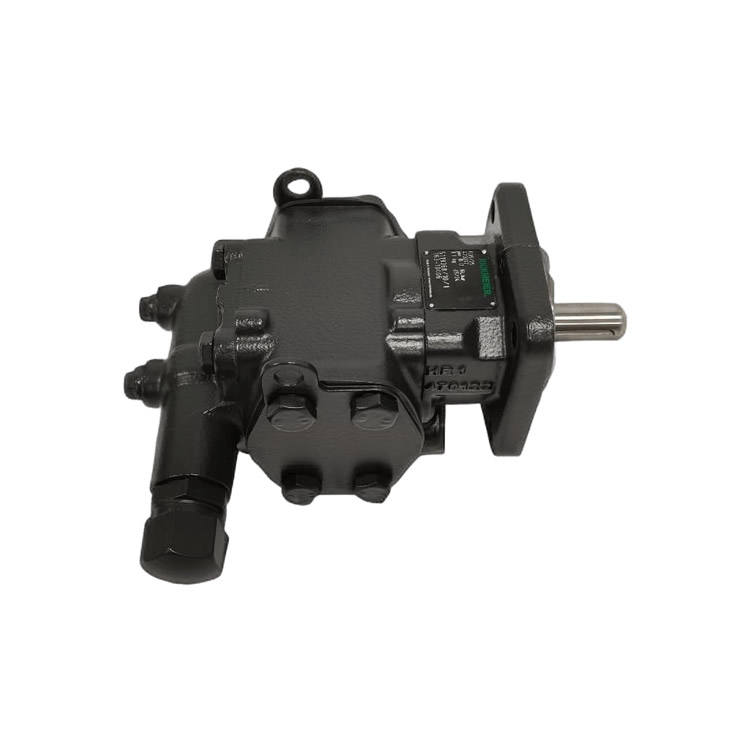

The RICKMEIER R35/31.5 FL-Z-DB16-W-SAE1.1/2-R is a high-pressure gear pump specifically designed for conveying media such as lubricating oils, greases, and mineral oils. It employs a precision gear structure and wear-resistant materials, making it suitable for industrial hydraulic systems, lubrication systems, and high-pressure conveyance applications.
Item Number: 330261-9
Structural Features
Compact and Efficient Design
Short, straight fluid channel design optimizes suction performance, reduces energy loss, and operates with low noise.
The gears are made of hardened carburized steel, paired with multi-component sliding bearings, ensuring a service life of thousands of hours.
Seal Reliability
Standardly equipped with NBR rubber radial shaft seals, resistant to temperatures up to 80℃; can be upgraded to fluororubber or mechanical seals for high-temperature applications.
Designed without vulnerable valves, resulting in extremely low maintenance costs.
Modular Interface
SAE 1.5-inch flange interface (SAE1.1/2), compatible with standard hydraulic piping systems.
Supports customization of motors: standardly equipped with three-phase asynchronous motors, with options for single-phase AC/DC motors.
Application Areas
Industrial Lubrication Systems: Gearbox and bearing lubrication (e.g., in wind turbines and paper machinery).
Hydraulic Power Units: Hydraulic pump stations for construction machinery (excavators, cranes) and mining equipment.
Oil Conveyance: Pressurized conveyance of heavy oil, cutting oil, and diesel fuel.
Special Scenarios: Lubrication circuits for diesel engines and compression technology equipment.
