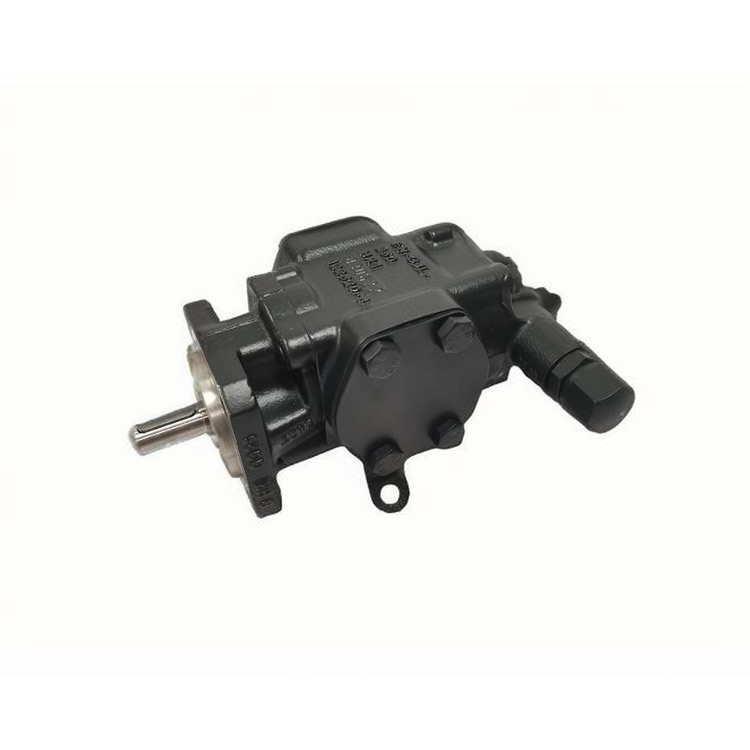

Rickmeier Oil Pump R35/63 FL-Z-DB16-W-SAE2-R
Item Number: 330264-3
Structural Design:
Three-Part Housing: Made of gray cast iron with a modular design for easy adaptation to customer-specific interfaces.
Wear-Resistant Components: Hardened steel gear shafts and specially coated plain bearings support brief dry running.
Low-Noise Operation: Optimized gear meshing and flow path design result in significantly lower operating noise compared to industry standards.
Performance Parameters:
Flow and Pressure: Rated flow of 63 L/min (@1450 rpm), maximum working pressure of 25 bar (mechanical seal version available as an option).
Media Compatibility: Suitable for lubricating oils, hydraulic oils, diesel, etc., with a viscosity range of 5–1500 cSt and temperatures up to ≤150°C.
Self-Priming Capability: No pre-filling required before startup, with a suction lift of up to -0.6 bar (short-term).
Sealing and Protection:
Standard radial shaft seals (pressure-resistant up to 6 bar), with options for mechanical seals (pressure-resistant up to 25 bar) or fluororubber oil seals (high-temperature resistant).
Supports ATEX explosion-proof certification, suitable for hazardous areas.
