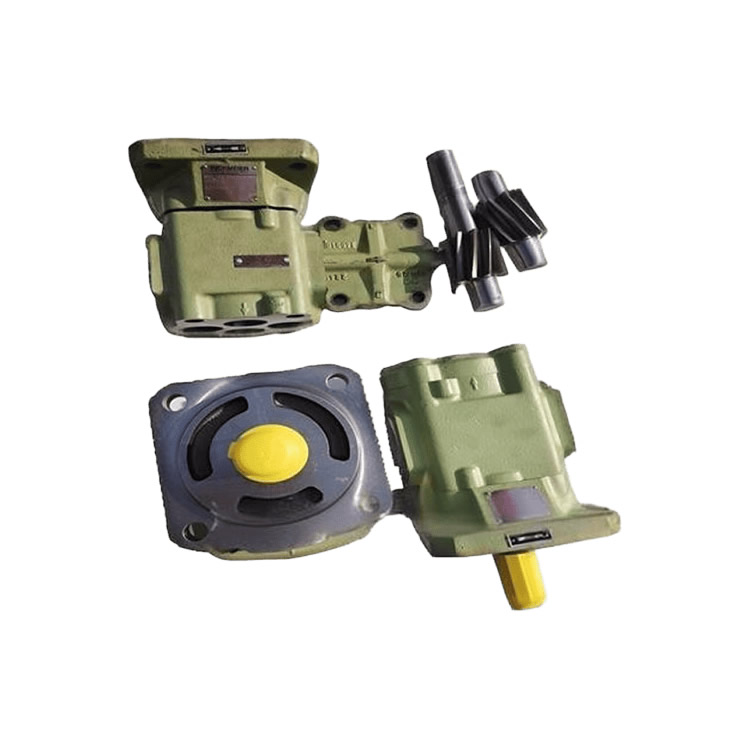

R35 Series: The standard series of Rickmeier gear pumps, featuring an external gear design, integrated pressure relief valve, and splined shaft ends.
Tandem Pump Combination:
R35/86: Displacement of 86 cm³/rev (high-flow unit).
R35/50: Displacement of 50 cm³/rev (low-flow unit), with both units connected in parallel to achieve stepwise flow control.
Flow and Pressure:
Single pumps offer displacements ranging from 35 to 2400 cm³/rev, while tandem pump combinations can achieve a maximum flow rate of up to 4000 L/min (depending on rotational speed).
The maximum operating pressure is 25 bar, with the DB4 pressure relief valve ensuring stable pressure.
Durability:
Constructed with highly wear-resistant cast iron housing and gears, along with optimized shaft seal design to extend service life.
Applicable media include hydraulic oil, cutting oil, diesel, emulsion, etc. (compatible with ATF oil, polyglycol oil, etc.).
Safety Certification: Compliant with the ATEX Directive 2014/34/EU, suitable for use in explosive hazard areas.
