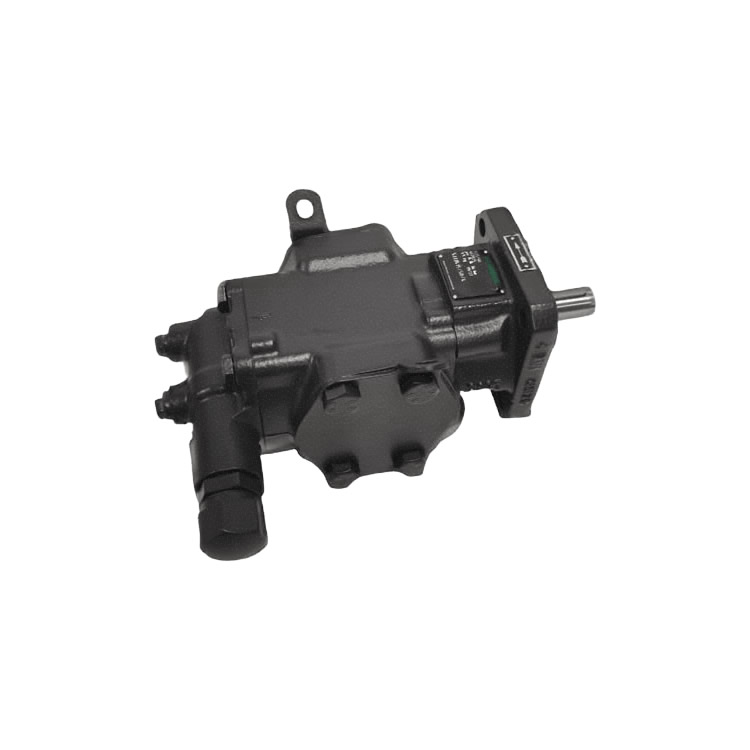

Model R35/25 FL-Z-W-SAE1.1/2-L-P
Item Number: 474886
Displacement: 35 cm³/rev (displacement per revolution)
Operating Pressure: Continuous operating pressure: 25 bar; Maximum instantaneous pressure: 315 bar
Connection Standard: SAE 1.1/2-inch flange connection, L-type shaft extension design
Shaft Seal System: W-type shaft seal (standard radial shaft seal ring), with optional slip ring seal
Media Compatibility: Lubricating oils, diesel, gear oils, hydraulic oils, fuels, etc. (requires lubricating media without hard particles)
Media Temperature: Standard model ≤70°C; High-temperature resistant model up to 300°C
Structural Materials: Gray cast iron housing, carburized steel gears (nitrided for improved wear resistance)
