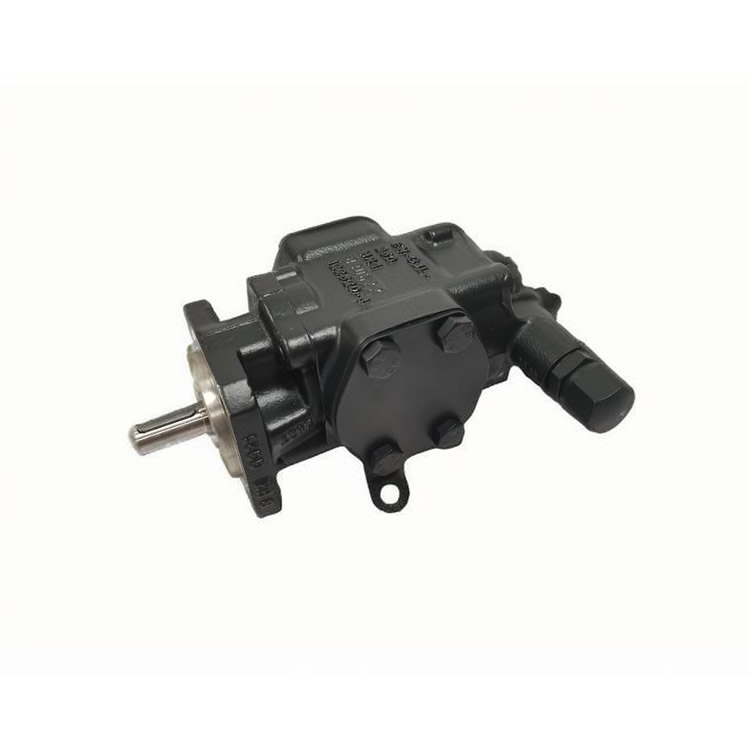

The RICKMEIER R35/63 FL-Z-DB16-SAE2-R-SO is a high-performance external gear pump that belongs to the R5 series standard pumps. It is specifically designed for industrial lubrication systems, hydraulic power transmission, and the conveyance of oil-based media. With German manufacturing technology at its core, it emphasizes reliability, long service life, and low-noise operation. Its modular design allows for diverse customization to meet the demands of complex working conditions.
Structural Design
Three-piece housing: The gray cast iron outer casing (corrosion-resistant) is paired with hardened carburized steel gear drive components, balancing strength and wear resistance.
Special tooth profile: The optimized gear meshing curve reduces operating noise (<70dB) and enhances suction efficiency.
Composite sliding bearings: The large-sized coated bearing design supports brief dry running and extends service life.
Sealing and Safety
Shaft seal options: Standard radial shaft seals (FPM fluororubber) are included, with mechanical seals (such as slip ring seals) available as options.
Integrated pressure limiting valve: A spring-loaded pressure protection valve (optional) prevents system overload (with a pressure regulation range of 1.6–25 bar).
