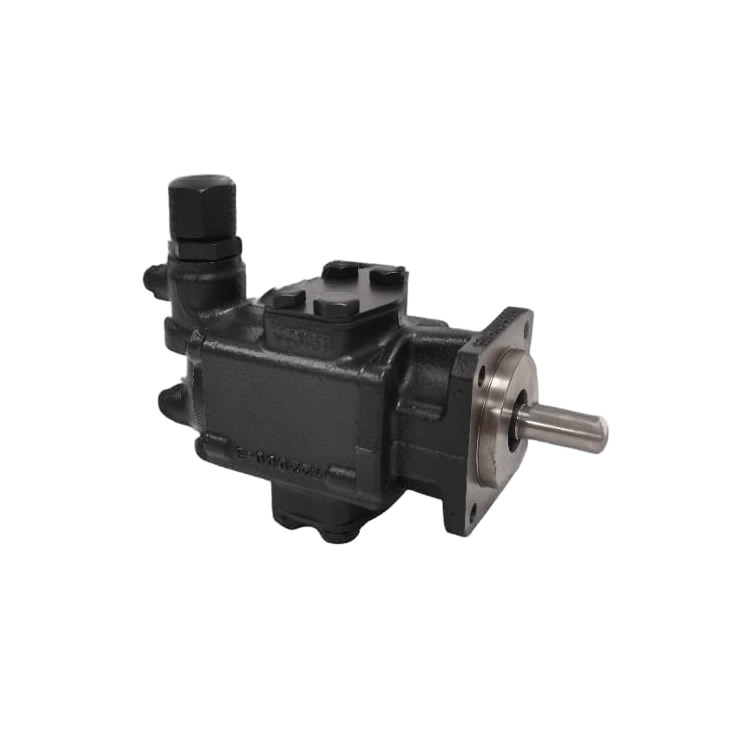

Rickmeier Pump R25/16 FL-Z-DB16-W-SAE1-R-P
Seal Configuration
Standard Fluororubber Oil Seal (FKM): Heat-resistant (≤120℃) and corrosion-resistant, suitable for media such as fuel and lubricating oil.
High-Pressure and Flow Performance
Operating Pressure: Up to 12 MPa (medium-pressure range), with the pressure relief valve protecting at 1.5–2 times the rated pressure.
Rated Flow Rate: Approximately 40 L/min (at a rotational speed of 1450 rpm).
Viscosity Adaptability Range: 5–1500 cSt, covering lubricating oils, fuels, hydraulic oils, etc.
Structural Design Advantages
Modular Three-Part Housing: Composed of a gray cast iron (EN-GJL-250) housing and hardened steel gear shafts (16MnCrS5), offering wear resistance and impact resistance.
Self-Priming Capability: No pre-filling of liquid is required upon startup, relying on the self-lubrication of the medium to reduce maintenance frequency.
Low-Noise Optimization: Precision gear meshing process, resulting in operating noise ≤75 dB(A).
Safety and Intelligence
Pressure Relief Valve Protection: Prevents system overload, with adjustable valve opening pressure (e.g., 10 Bar).
ATEX/EAC Ex Explosion-Proof Certification: Suitable for flammable and explosive environments (such as petrochemical and mining industries).
