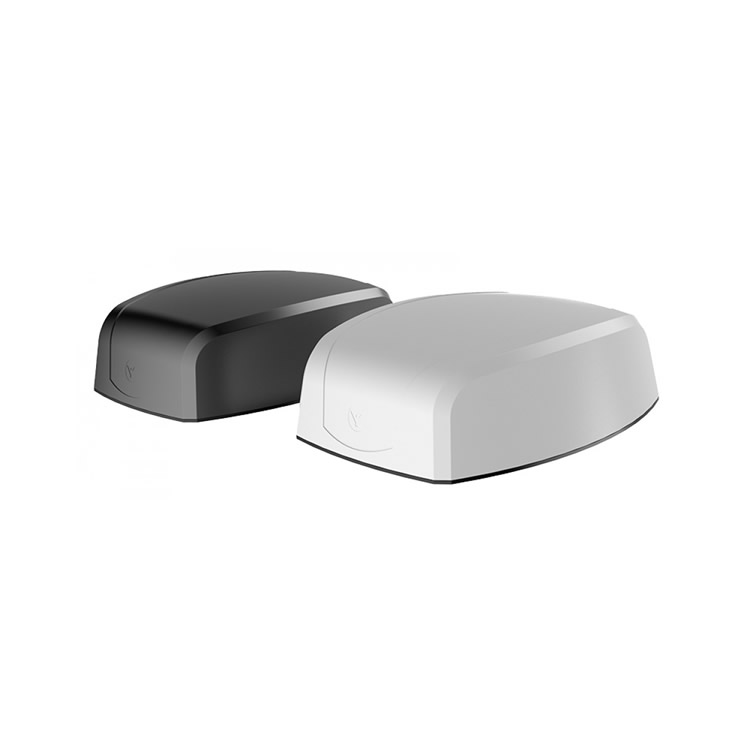

Model ProNexus Plus
Frequency 4G/5G 8x8 MIMO: 617 - 960 MHz, 1710 - 7200 MHz
WIFI 6x6 MIMO: 2400 - 2500 MHz, 4900 - 7200 MHz
Antenna Type Mobile Disk Style Antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain (peak) 4G/5G 3dBi (617 - 960 MHz)
4G/5G 7dBi (1710 - 7200 MHz)
WiFi 7 dBi (2.4/5.8/7.2 GHz)
Isolation * >10 dB for 617 - 960 MHz
>15 dB for 1710 - 7200 MHz
>15 dB for WiFi elements
VSWR * < 2.5:1 for 617 - 960 MHz
< 2.0:1 for 1710 - 3800 MHz
< 2.0:1 for 2400 - 2500 MHz
< 2.0:1 for 4900 - 7200 MHz
EMC Full protection (EN 301 489-1)
