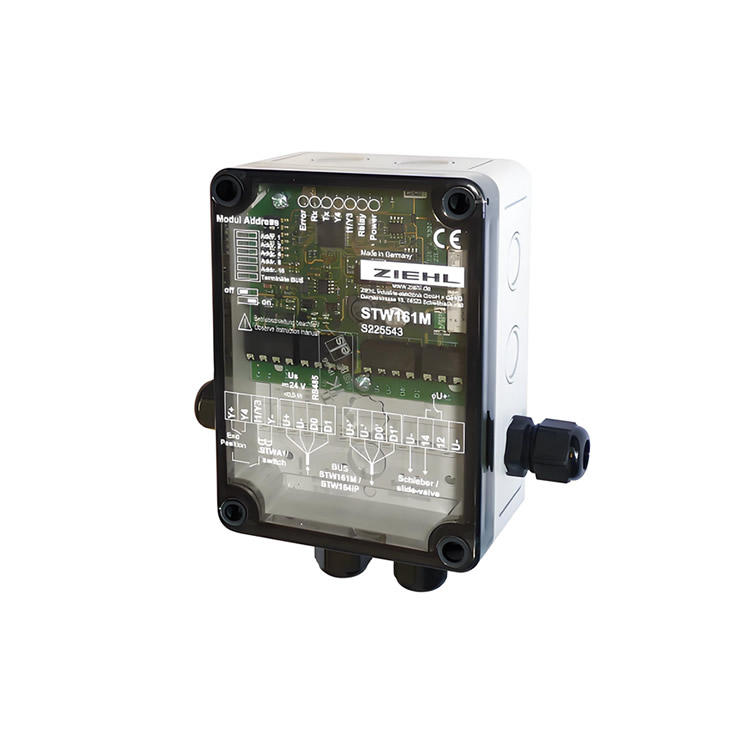

Application: Bus module for controlling slide valves in extraction and exhaust systems
Compatible controller: STW164IP
Control voltage: DC 24 V (allowable range: 20 – 30 V)
Power consumption: < 0.5 W
Electrical Characteristics
Relay output (terminals 12, 14)
Switching voltage: DC 24 V
Switching current: Maximum 0.5 A
Rated operating current: DC-13, Ie = 0.5 A, Ue = 24 V
Inputs I1, Y3
Connectable devices:
STWA1(H) current transformer
Potential-free contacts
S1 current sensor
Overload capacity:
Maximum 100 A (continuous)
Maximum 300 A (within 10 seconds)
Input Y3
Internal resistance: Approximately 38 kΩ
Switching thresholds:
ON > 17 V
OFF < 8 V
Environmental and Mechanical Characteristics
Operating temperature: -20°C to +55°C
Vibration resistance (in accordance with EN 60068-2-6):
2 – 13.2 Hz: ±1 mm
13.2 – 100 Hz: 1g
2 – 25 Hz: ±1.6 mm
25 – 150 Hz: 5g
Protection rating:
Enclosure: IP54
Terminals: IP20
Mounting method: Screw fixation
Weight: Approximately 310 g
