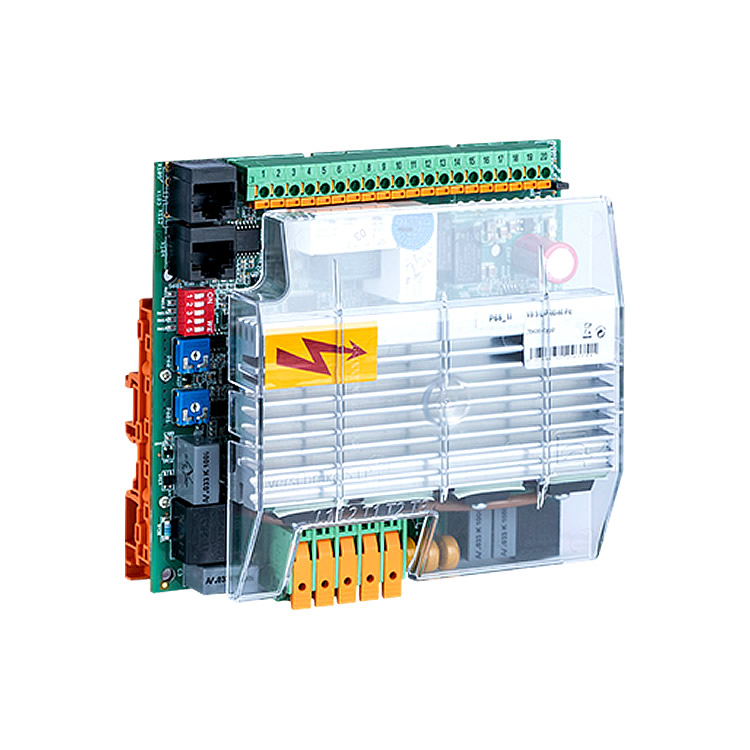

Rated Equipment Current (Ie): 60A
Rated Operating Voltage (Ue): 200...480VAC ±10%, 50/60Hz
Control Supply Voltage (Us): 24VDC ±10% / 1.0A
Rated Motor Power (at 400V): 4.0 … 15kW
Performance Parameters
Maximum Power Consumption:
During operation: Approximately 25W
During standby: Approximately 8W
Braking Time: Self-optimizing (default 8 seconds)
Restart Time: 200ms
Control Voltage (Uc): 24VDC ±10%
Control Input Impedance: 5kOhm
Relay Output Contact Ratings: 3A / 250VAC / 30VDC
Structure and Safety
Structural Features: No mechanical switching elements in the main circuit
Installation Category: 3
Overvoltage Category/Pollution Level:
Control and auxiliary circuits: II / 2
Main circuit: III (TT / TN / TI-Netze) / 2
Rated Impulse Withstand Voltage (Uimp):
Control and auxiliary circuits: 2.5kV
Main circuit: 4kV
Rated Insulation Voltage (Ui):
Control and auxiliary circuits: 24V
Main circuit: 480V
