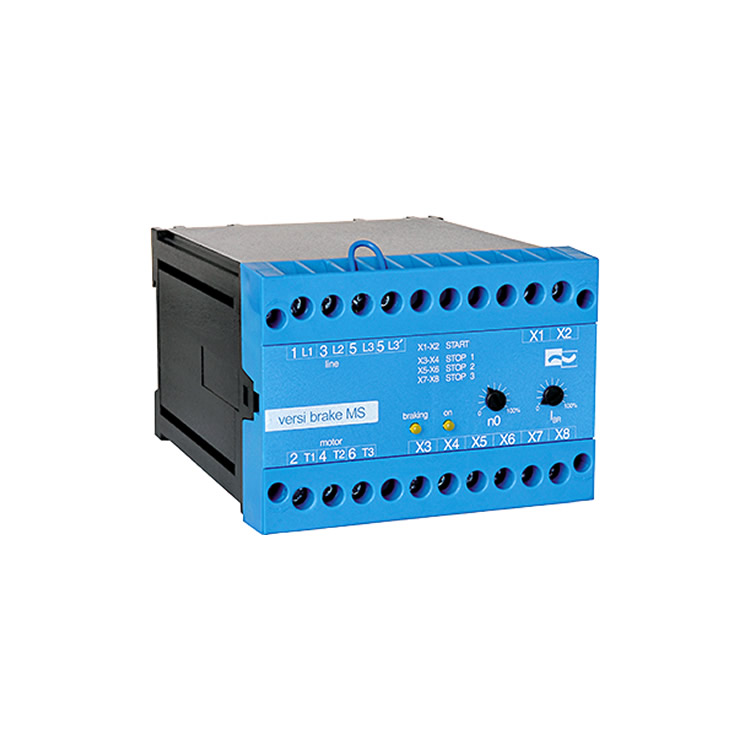

Model: VBMS 400-20
AC-3 Rated Operating Power: 2.2 kW
Rated Operating Voltage (50/60 Hz, conforming to DIN EN 50160 / IEC 38): 3× 415V ±10%
Conventional Enclosed Heating Current Iin = Ie (Motor Contactor): 16 A
Adjustable Range of Braking Current: 2 … 20 A
Maximum Braking Time: 10 s
Maximum Braking Frequency (Braking Current 10 A, Braking Time 5 s / 10 s): Once every 25 s / Once every 50 s
Maximum Braking Frequency (Braking Current 20 A, Braking Time 5 s / 10 s): Once every 60 s / Once every 120 s
Switch-off and Braking Delay Time: 500 ms
Braking Voltage (DC): 0 … 220 V DC
Maximum Wiring Cross-sectional Area: 2.5 mm² per terminal
Ambient Temperature (Operating / Storage): 0°C … 45°C / -25°C … 75°C
Weight: 0.6 kg
Protection Class: IP 20
