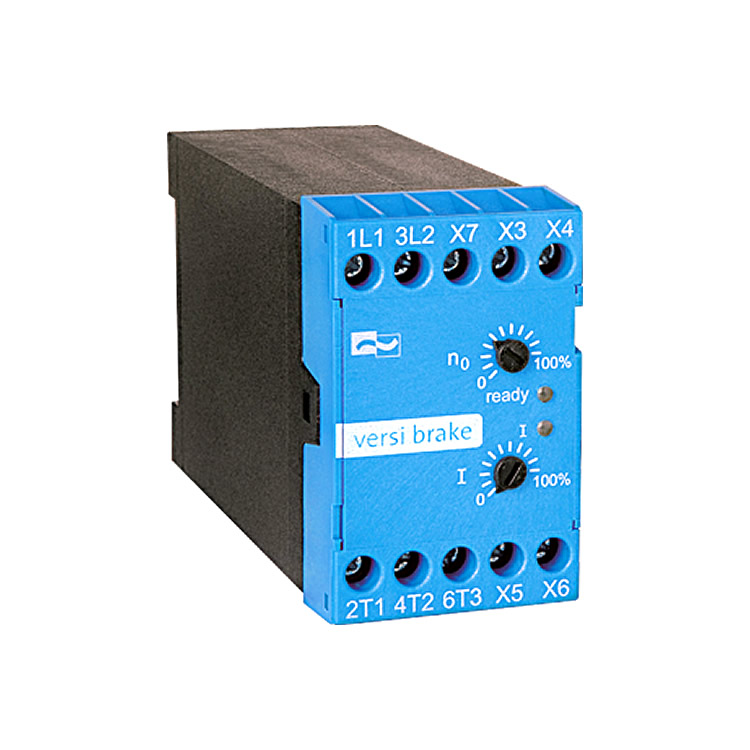

Model: VB 230-6LT
Rated Equipment Current (Braking Time ≤ 20s): 6 A
Rated Equipment Current (Braking Time ≤ 30s): 6 A
Power Supply Voltage: 220/240V ±10%, 50/60Hz
Recommended Rated Current Range of Motor: 0.3 … 3 A
Braking Voltage: 0 … 110 VDC
Power Consumption of Electronic Equipment: 3 VA
Maximum Braking Time: 0 … 30 s (customizable to 0 … 60 s)
Braking Current Adjustment Range: 10% … 100%, steplessly adjustable
Maximum Braking Frequency (with a braking time of 5s): VB-6LT: 1/8 s⁻¹; VB-25LT: 1/60 s⁻¹; VB-30LT: 1/90 s⁻¹
I²t Value (Power Semiconductor): VB-6LT: 310 A²s; VB-25LT: 1250 A²s; VB-30LT: 1350 A²s
Control Relay Contact Rating: 3 A / 250 VAC; 3 A / 30 VDC
Residual Electromotive Force Delay Time: Self-optimizing, ranging from 0.2 … 1.8 s
Maximum Connectable Cross-Sectional Area: 2 × 2.5 mm² per terminal
Ambient Temperature: 0 … 45 °C
Storage Temperature: -25 … 75 °C
Weight: 0.6 kg
Protection Class: IP 20
Installation Method: Snap-on mounting on 35 mm DIN rail
