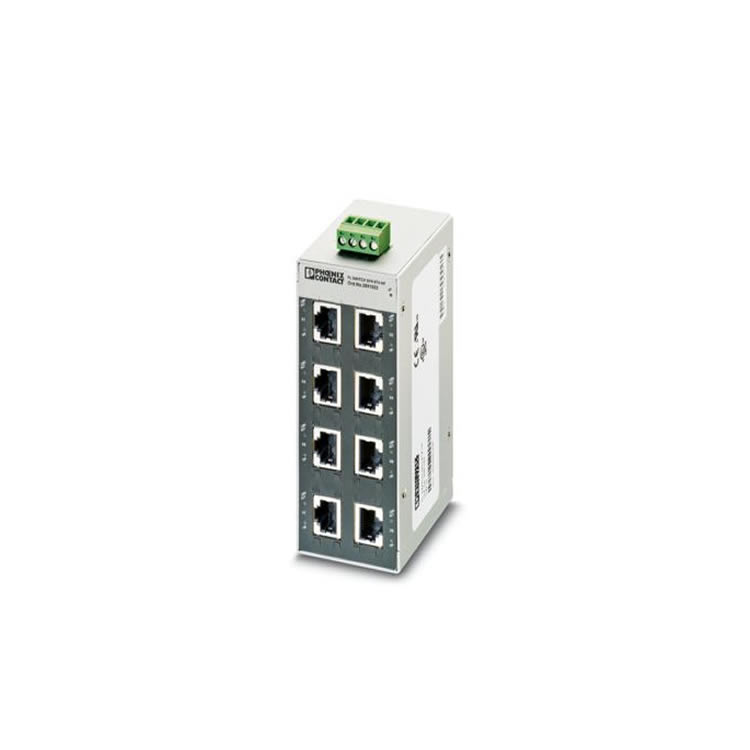

PHOENIX 2891929 Industrial Ethernet Switch
Product description
Standard function Ethernet switch with eight RJ45 ports. Provides automatic detection of data transmission speed of 10 or 100 Mbps (RJ45), autocrossing function, 9 V DC ... 32 V DC input voltage, redundant power supply capable with remote alarming
Width:50 mm
Height:120 mm
Depth:70 mm
Housing material: Aluminum
Protection degree: IP20
Ambient temperature (operation): 0 °C ... 60 °C
Ambient temperature (storage/transport): -20 °C ... 70 °C
Permissible humidity (operation): 5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
Vibration (operation): in accordance with IEC 60068-2-6: 5g, 150 Hz
Air pressure (operation): 86 kPa ... 108 kPa (up to 1500 m above sea level)
Air pressure (storage/transport): 66 kPa ... 108 kPa (up to 3500 m above sea level)
