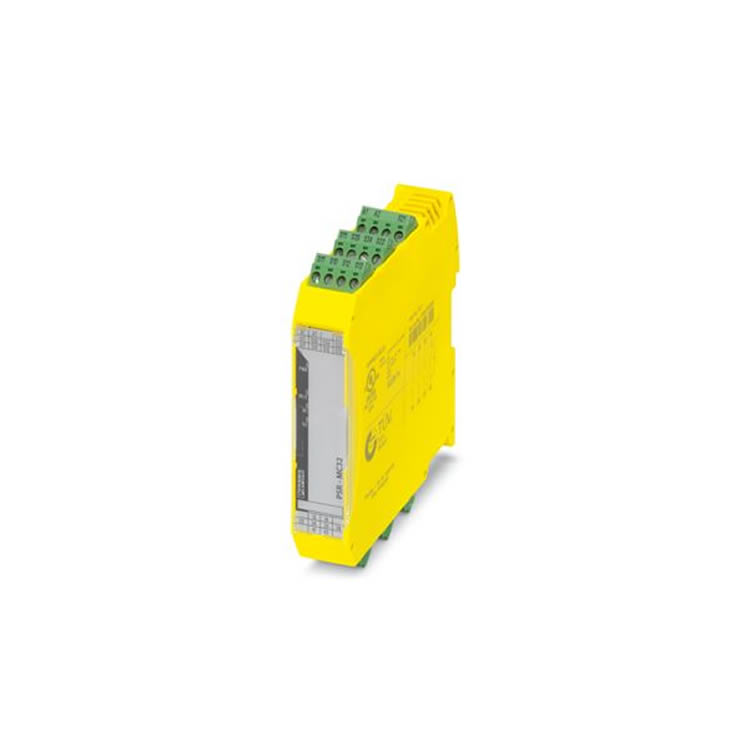

PHOENIX PSR-MC32-3NO-1NC-24-230UC-SC Safety relays
Safety relay for emergency stop, safety doors, and light grids up to SIL 3, Cat. 4, PL e, 1 or 2-channel operation, automatic or manual, monitored start, 3 enabling current paths, 1 signaling current path, US = 24 ... 230 V AC/DC, plug-in screw terminal block
Width:22.5 mm
Height:112.2 mm
Depth:114.5 mm
Color (Housing):yellow (RAL 1018)
Housing material:PA
Degree of protection:IP20
Min. degree of protection of inst. location:IP54
Ambient temperature (operation):-40 °C ... 55 °C (observe derating)
Ambient temperature (storage/transport):-40 °C ... 85 °C
Maximum altitude ≤ 2000 m (Above sea level)
Max. permissible humidity (storage/transport):75 % (on average, 85% infrequently, non-condensing)
Max. permissible relative humidity (operation):75 % (on average, 85% infrequently, non-condensing)
Shock:15g
Vibration (operation):10 Hz ... 150 Hz, 2g
