Phoenix PLC-OSC- 24DC/ 24DC/ 2/ACT Solid-state relay module

Date: 2025-05-29

Models: PLC-OSC- 24DC/ 24DC/ 2/ACT

Price: Phone or Email Inquiry

Do you have any questions about this product? Please contact our customer service by phone number +852 30623028 Or Quick Inquiry Form.

Product Overview

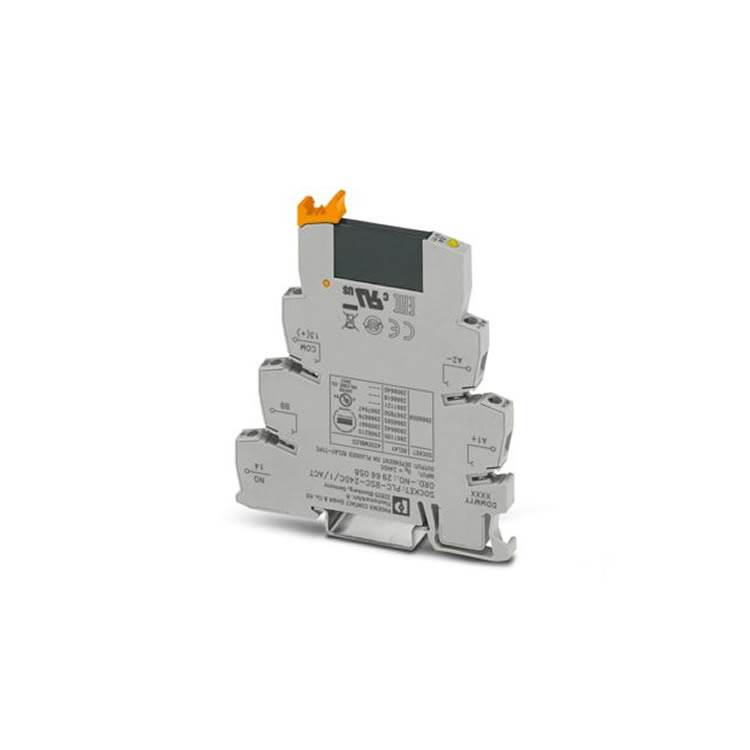

Phoenix PLC-OSC- 24DC/ 24DC/ 2/ACT Solid-state relay module

PLC-INTERFACE for output functions, consisting of PLC-BSC.../ACT basic terminal block with screw connection and plug-in miniature solid-state relay, for mounting on DIN rail NS 35/7,5, 1 N/O contact, input: 24 V DC, output: 3 - 33 V DC/3 A

Nominal input voltage UN	24 V DC
Nominal voltage (plugged-in solid-state relay)	24 V DC
Input voltage range in reference to UN	0.8 ... 1.2
Input voltage range	19.2 V DC ... 28.8 V DC
Switching threshold "0" signal in reference to UN	≤ 0.4
Switching threshold "1" signal in reference to UN	≥ 0.8
Typical input current at UN	8.5 mA
Typical response time	20 µs (at UN)
Typical turn-off time	300 µs (at UN)
Operating voltage display	Yellow LED
Protective circuit	Reverse polarity protection; Polarity protection diode
Protective circuit	Freewheeling diode; Freewheeling diode
Transmission frequency	300 Hz

Width	6.2 mm
Height	80 mm
Depth	94 mm
