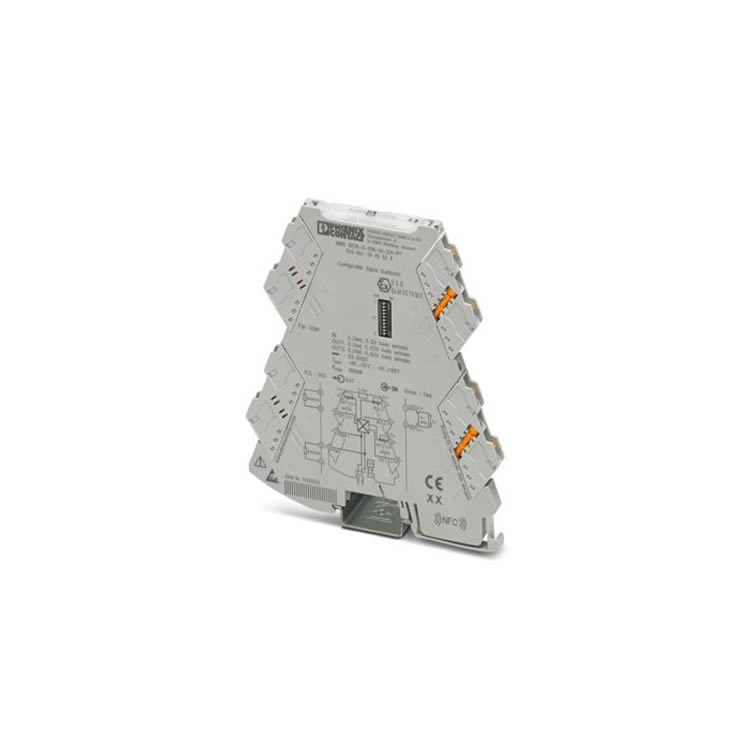

PHOENIX MINI MCR-2-UNI-UI-2UI-PT Signal duplicator
Universally configurable 4-way signal duplicator, with plug-in connection technology for the electrical isolation and duplication of analog signals. Configurable via DIP switch or software. Push-in connection technology, standard configuration.
Configurable, freely adjustable 4-way signal duplicator with plug-in connection technology for the duplication, electrical isolation, conversion, amplification, and filtering of standard signals. Current signals between 0 mA ... 24 mA and voltage signals between 0 V ... 12 V can be processed on the input side. Signals between 0 mA ... 21 mA and 0 V ... 10.5 V are possible on the output side. Both output signals can be set independently of one another. The minimum measuring span is 1 mA and 0.5 V. Full accuracy is maintained with a measuring span greater than 10 mA and 5 V. You can configure the device using one of the free software solutions. Default settings can also be made directly on the device by simply using the DIP switches (see configuration table). The measuring transducer supports fault monitoring and NFC communication.
Environmental conditions
Protection degree: IP20 (not UL-approved)
Ambient temperature (operation): -40 °C ... 70 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Altitude ≤ 2000 m
Permissible humidity (operation): 5 % ... 95 % (non-condensing)
Electrical isolation: 4-way isolation
Step response (0–99%): 140 ms (15 Hz sampling rate)
45 ms (60 Hz sampling rate)
25 ms (240 Hz sampling rate, only software-settable)
Maximum temperature coefficient: 0.01 %/K
Maximum transmission error: ≤ 0.05 % (configured output range maximum)
