PHOENIX PSR-SCP-230AC/ESAM2/3X1/1X2/B Safety relays-Electrical-Effsen Automation

PHOENIX PSR-SCP-230AC/ESAM2/3X1/1X2/B Safety relays

Date: 2025-05-29

Models: PSR-SCP-230AC/ESAM2/3X1/1X2/B

Price: Phone or Email Inquiry

Do you have any questions about this product? Please contact our customer service by phone number +852 30623028 Or Quick Inquiry Form.

Product Overview

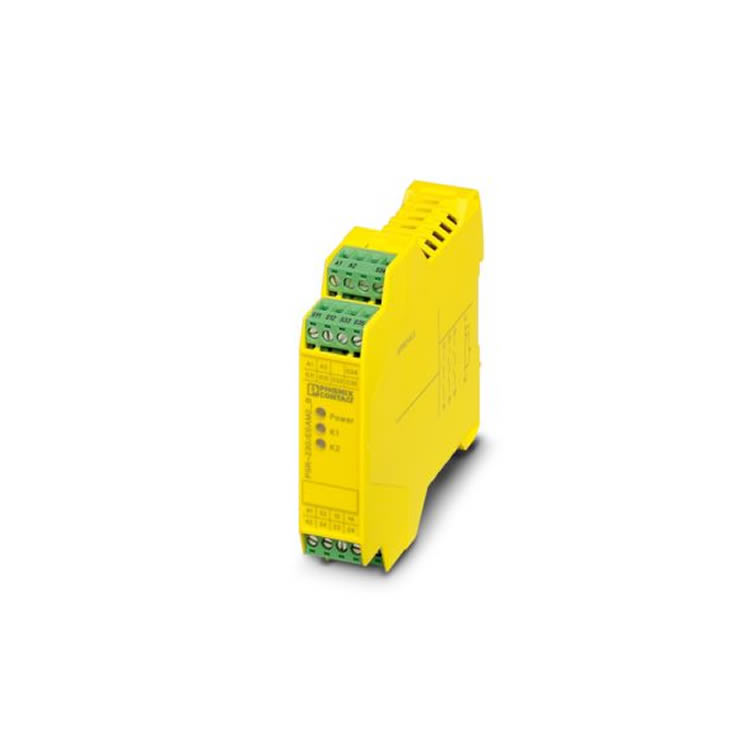

PHOENIX PSR-SCP-230AC/ESAM2/3X1/1X2/B Safety relays

Safety relay for emergency stop and safety door up to SIL 1, Cat. 1, PL c, depending on the application up to SIL 3, Cat. 4, PL e, single-channel operation, 3 enabling current paths, nominal input voltage of 230 V AC, plug-in screw terminal blocks

Maximum power consumption under nominal conditions: 2.88 W

Rated insulation voltage: 250 V AC

Rated control supply current IS:22 mA

Voltage at input/start and feedback circuit:~ 24 V DC

Width:22.5 mm

Height:99 mm

Depth:114.5 mm

Housing material:PA

Degree of protection:IP20

Min. degree of protection of inst. location:IP54

Ambient temperature (operation):-25 °C ... 55 °C

Ambient temperature (storage/transport):-40 °C ... 85 °C
