Phoenix PSR-MS21-1NO-1DO-24DC-SC Safety relays

Date: 2025-05-29

Models: PSR-MS21-1NO-1DO-24DC-SC

Price: Phone or Email Inquiry

Do you have any questions about this product? Please contact our customer service by phone number +852 30623028 Or Quick Inquiry Form.

Product Overview

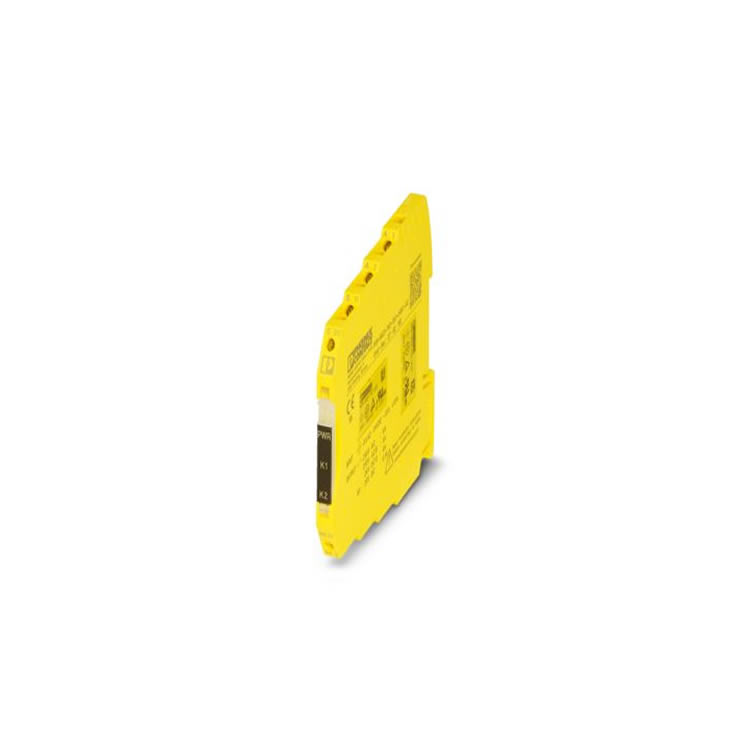

Phoenix PSR-MS21-1NO-1DO-24DC-SC Safety relays

Safety relay for failsafe controllers up to SIL 3, Cat. 4, PL e, 1-channel operation, autostart, 1 enabling current path, US = 24 V DC in accordance with IEC 61131-6, fixed screw terminal block

Designation:24V

Rated control circuit supply voltage US:24 V DC -20% / +25%

Inrush current :< 11.5 A (typ. with US, Δt = 25 ns)

Width:6.8 mm

Height:93.1 mm

Depth:102.5 mm

Color (Housing):yellow (RAL 1018)

Housing material:PBT

Degree of protection:IP20

Min. degree of protection of inst. location:IP54

Ambient temperature (operation): -40 °C ... 60 °C (observe derating)

Ambient temperature (storage/transport):-40 °C ... 85 °C

Maximum altitude:≤ 2000 m (Above sea level)
