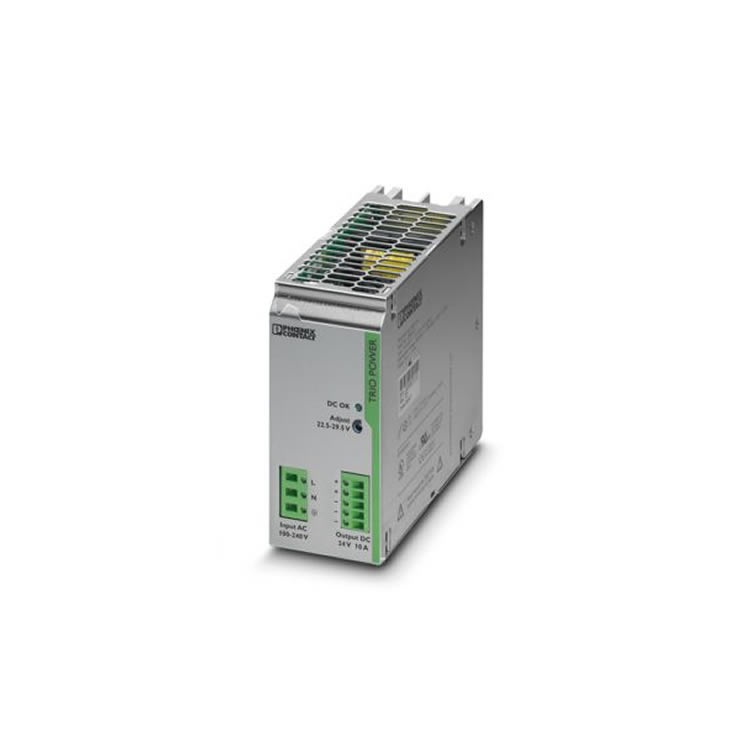

Phoenix TRIO-PS/1AC/24DC/10 Power supply
Primary-switched TRIO POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/10 A
TRIO POWER power supplies with standard functionality
TRIO POWER is particularly suited to standard machine production, thanks to 1- and 3-phase versions up to 960 W. The wide-range input and the international approval package enable worldwide use.
The robust metal housing, the high electric strength, and the wide temperature range ensure a high level of power supply reliability.
Rated input voltage range: 100 V AC ... 240 V AC
Input voltage range: 85 V AC ... 264 V AC (derating < 90 V AC: 2.5 %/V)
Derating < 90 V AC (2.5 %/V)
Input voltage range: 85 V AC ... 264 V AC (derating < 90 V AC: 2.5 %/V)
Maximum electrical strength 300 V AC
Type of supply voltage: alternating current
Inrush current < 15 A
Inrush current integral (I²t) 0.7 A²s
AC frequency range: 45 Hz ... 65 Hz
Mains supply buffer time: > 24 ms (120 V AC)
> 24 ms (230 V AC)
Current consumption: 3 A (100 V AC)
1.5 A (240 V AC)
Nominal power consumption: 272 VA
Protective circuit: transient surge protection; varistor
Power factor (cos phi): 0.99
Typical response time: < 1 s
Input fuse: 6.3 A (slow blow, built-in)
Allowed backup fuse: B10 B16
Recommended input protection circuit breaker: 10 A ... 16 A (characteristics B, C, D, K)
PE discharge current: < 3.5 mA
