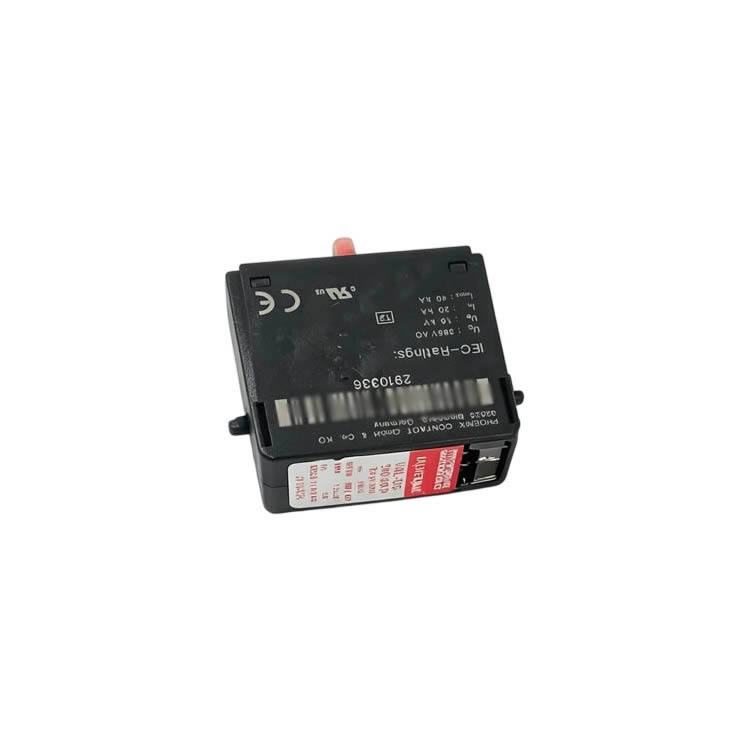

Phoenix Contact VAL-US-240/40-P (2910336) Type 2 Surge Protection Plug
The VAL-US-240/40-P is a Type 2 surge protection plug from the Phoenix Contact VALVETRAB plug-in system, designed for mounting on a base element. It provides L-N, L-PEN and N-PE protection modes with optical fault indication, suitable for 240/415 V AC power distribution systems.
| Item | Specification |
|---|---|
| Type | Type 2 (II T2) |
| Nominal Voltage | 240/415 V AC |
| Max. Continuous Voltage | 385 V AC |
| Nominal Discharge Current | 20 kA |
| Max. Discharge Current | 40 kA |
| Voltage Protection Level | ≤ 1.8 kV |
| Short-Circuit Current Rating | 25 kA |
| Connection | VALVETRAB plug-in system |
| Protection Type | IP20 |
| Standards | IEC 61643-11, EN 61643-11 |
| Approvals | UL Recognized, cUL Recognized, cULus Recognized |
